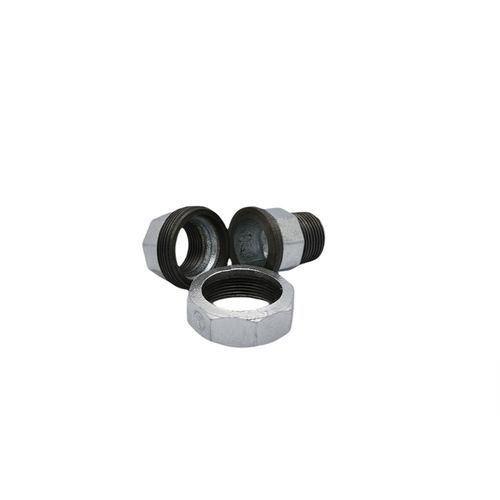

Hydraulic fitting Fig.374threadedironstandard
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded
- Material
- iron
- Other characteristics
- standard, union
- Diameter
Min.: 6 mm
(0.236 in)Max.: 150 mm
(5.906 in)- Operating pressure
25 bar
(362.59 psi)
Description
Galvanised Pipe and Fittings Union Nut
Maximum Pressure: -
Maximum Temperature: -
200°C (392°F)
Tensile Strength: -
350MPA
Suitable Applications: -
Water, Oil, Gas, Petro-Chemical
Product Description
Union nut is part of union, to be used for accessory replacement. Jianzhi union tail has high standard level, it can be used on our Jianzhi pipe unions without any problems.
Product Parameters
Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: - 200°C (392°F)
Tensile Strength: - 350MPA
Hardness: - HB150 (Brinell)
Elongation Rate: - 10%
Suitable Applications: - Water, Oil, Gas, Petro-Chemical
Material: - Malleable Iron
