Key lock K0522 series
quarter-turnfor doorzinc

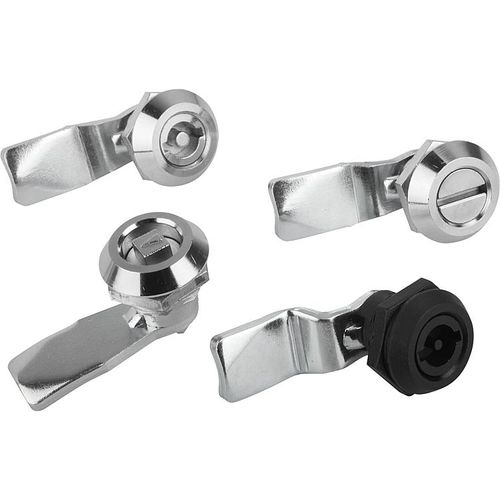

Key lock - K0522 series - HEINRICH KIPP WERK GmbH & Co. KG - quarter-turn / for door / zinc
Key lock - K0522 series - HEINRICH KIPP WERK GmbH & Co. KG - quarter-turn / for door / zinc
Key lock - K0522 series - HEINRICH KIPP WERK GmbH & Co. KG - quarter-turn / for door / zinc - image - 2
Key lock - K0522 series - HEINRICH KIPP WERK GmbH & Co. KG - quarter-turn / for door / zinc - image - 3
Key lock - K0522 series - HEINRICH KIPP WERK GmbH & Co. KG - quarter-turn / for door / zinc - image - 4
Add to favorites
Compare this product

Characteristics

Type
key, quarter-turn
Product applications
for door
Material
zinc, steel, plastic
Other characteristics
plastic, IP65

Description

Material: Housing, actuator and nut, die-cast zinc or PA6 GFR 30 plastic. Flat seal rubber. Tongue steel.Version:Housing, actuator and nut trivalent passivated or black. Tongue electro zinc-plated.Note:Quarter-turn lock with spring-loaded tongue. Right or left deployment. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side. Vibration-proof (except plastic version), a catch prevents independent opening. Water and dust tight according to IP65. Please order the desired tongue type separately. Every tongue can be combined with every housing.Accessory:Key K0535Drawing reference: Actuation: a) square 7 mm b) square 8 mm c) slot d) double lug 3 mm e) double lug 5 mm

Catalogs

K0522
K0522
2 Pages
