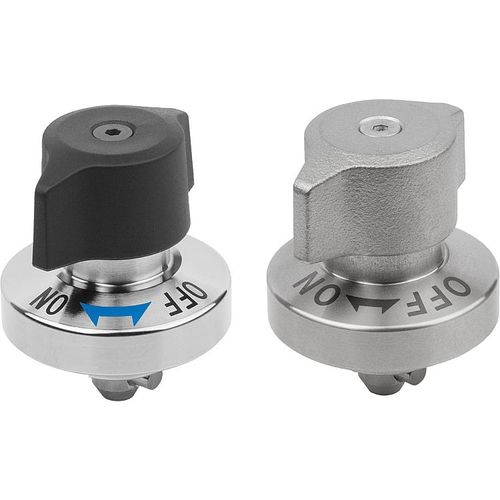

Quarter-turn lock K1558 series

for doorsteelstainless steel

Quarter-turn clamp locks are used for replacing and locking fixtures or hatches quickly and easily. Toolless clamping shortens setup times. Material: Housing steel or stainless steel. Pin stainless steel. Knob stainless steel or thermoplastic PA (polyamide). Version: Housing nickel-plated or bright. Pin bright. Knob reinforced PA fibreglass, black. Knob stainless steel, bright. Note: Stainless steel fastening screws M2 or M3 are included. Form A mounting option for plate thickness 6 mm. Form B mounting option for plate thickness > 6 to 14 mm. Type of operation: Check that the rotary knob is in the "OFF" position and that the pin is retracted. Push or place the quarter-turn clamp lock over the premounted clamping plate. Press the rotary knob down and turn to the "ON" position. When fully clamped, a click sound is heard. Accessory: Clamping plates K1062 Drawing reference: 1) plate
