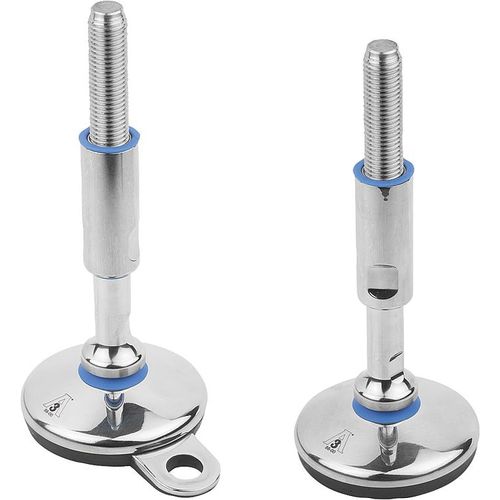

Machine foot K1303 seriesrubberNBRstainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- machine
- Material
- rubber, NBR, stainless steel
- Type
- leveling
- Other characteristics
- threaded
- Diameter
Min.: 80 mm
(3 in)Max.: 120 mm
(5 in)
Description
Material:
Foot plate and threaded spindle stainless steel 1.4301.
Rubber base (NBR) Shore 85 +/-5, FDA tested.
Rubber seal, silicone, FDA tested.Version:Foot plate, high-gloss polished.
Threaded spindle, bright.
Rubber base, black.
Rubber seal, blue.Note:Certified according to 3-A Sanitary Standard 88-00.
The high surface quality, the double sealing of the thread and the special seal on the machine foot's spindle joint prevent dirt from sticking and reduce cleaning times to a minimum.
The machine foot is supplied with the 3-A logo.Application:The machine foot is particularly suitable for machines, plants and appliances in the foodstuff industry, breweries, dairies, beverage and pharmaceutical industries.Accessory:Hygienic USIT® sealing and shim washer K1491.
Hexagon cap nut with collar K1493.Drawing reference:
1) Adjustment range
