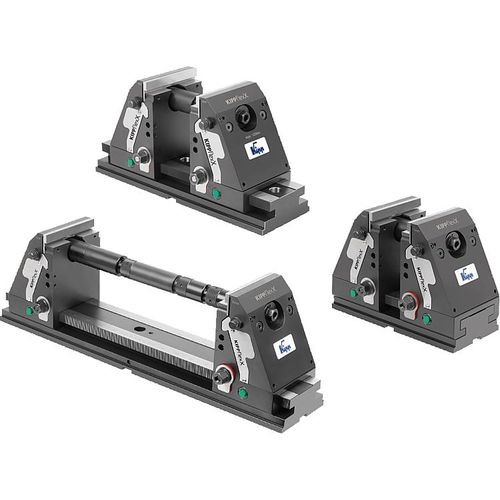

Workpiece clamping jaw K1555 series

workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
workpiece clamping jaw
Add to favorites
Compare this product


Characteristics

Options
workpiece

Description

The KIPPflexX 5-axis vice features excellent stability and flexibility, and is extremely easy to use. The KIPPflexX 5-axis vice can be used as a positive-down force vice or normal vice. When the positive down force function is used, the workpiece can be held with a repeat accuracy of ±0.01 mm. A workpiece clamping height of 180 mm enables easy access during machining. The clamping width is preset using the crank handle, cutting down on setup times. Additionally, the closed geometries and the resistance to dirt that they provide keep maintenance and repair times to a minimum.Material:Steel.Version:Baseplate and workpiece support hardened.Note:Additional product information can be found in the operating instructions.Type of operation:Quick adjustment using crank handle.Advantages:For use as centric-clamping device with positive down force function or vice. Straightforward, infinite clamping width adjustment using crank handle. Optimum clamping height for 5-axis machining. Flexible options for connection to machine tables.On request:Various spare parts, larger clamping widths.Accessory:Baseplates K1556 Jaw plates with pins K1557.1251 Jaw plates, machinable K0975.1252 Combination jaw plates, smooth/with pins K1557.1252 Seating ledges K0974 Extension shafts K0990 Cylinder clamping set K0989.12535 Stop set K0993.150 Clamping claw sets K1008 Fitted bolts K0815.12065 Socket head screws K0869.12X60 Torque wrench K1489.01 Clamping pin K0967 Slot nuts K0954.14X20Clamping force:see diagramApplications:Suitable for T-slot and grid hole tables and zero-point clamping systems. Size 282.84mm for diagonal alignment on zero-point clamping systems with gauge
