Mechanical clamping system K0809 series
modular

Mechanical clamping system - K0809 series - HEINRICH KIPP WERK GmbH & Co. KG - modular
Mechanical clamping system - K0809 series - HEINRICH KIPP WERK GmbH & Co. KG - modular
Mechanical clamping system - K0809 series - HEINRICH KIPP WERK GmbH & Co. KG - modular - image - 2
Add to favorites
Compare this product

Characteristics

Type
mechanical
Other characteristics
modular

Description

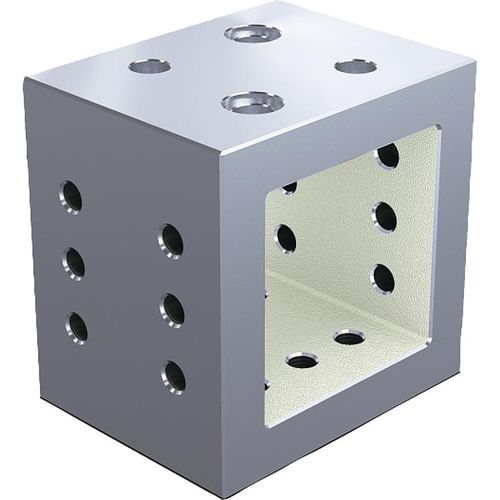

Material:GJL 300.Version:Support and mounting surfaces groundNote:Grid spacing 50 ±0.02 mm. Tooling blocks with grid holes are used for constructing modular fixtures. They can be positioned and mounted precisely on grid systems. This means that the grid hole spacing is maintained on the raised clamping face. Tooling blocks can also be used as a base element for clamping smaller workpieces. Size M12 tooling blocks are fastened using shoulder screws K0815.112065. Size M16 tooling blocks are fastened using shoulder screws K0815.116065. Please order protection plugs to plug unused grid holes separately.Drawing reference: 1) tapped hole 2) hole for shoulder screw 3) hole for DIN 912 cap screw
