Locating pin K1094 series

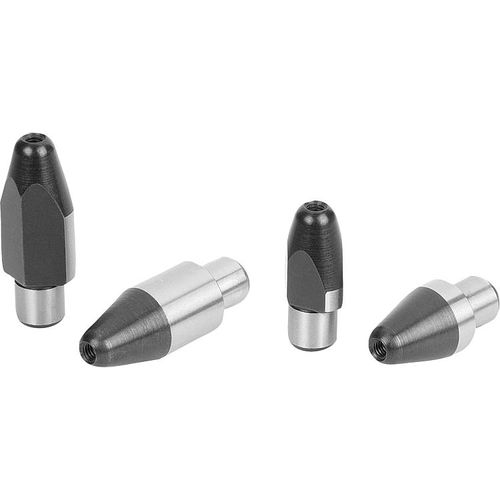

Locating pin - K1094 series - HEINRICH KIPP WERK GmbH & Co. KG
Locating pin - K1094 series - HEINRICH KIPP WERK GmbH & Co. KG
Locating pin - K1094 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 2
Locating pin - K1094 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 3
Locating pin - K1094 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 4
Add to favorites
Compare this product

Description

Material:Steel.Version:Hardened and ground (HRC 60 ±2).Note:The locating pins are designed to make the joining process easier. Used in combination with hardened locating bushes 02026, they allow exact, low-wear, and fast changes of the workpiece. Versions D1 = 5 and D1 = 6 do not have an internal thread.Drawing reference: Form B: cylindrical pin Form C: rhomboid pin
