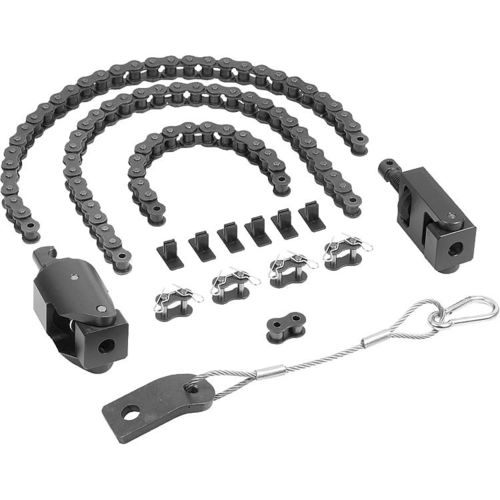

Mechanical clamping set K1650 series

mechanical clamping set
mechanical clamping set
mechanical clamping set
mechanical clamping set
mechanical clamping set
mechanical clamping set
mechanical clamping set
mechanical clamping set
Add to favorites
Compare this product


Characteristics

Type
mechanical
Clamping force

Min.: 15 kN

Max.: 40 kN

Description

Material:Clamping hook, steel. Clamping bracket, steel. Roller chain, steel.Version:Steel parts, tempered.Note:Chain clamps are used mainly in machine and plant construction. Chain clamps enable cylindrical, complicated and large to very large workpieces to be clamped securely and effectively in the quickest and easiest way. Suitable for cylindrical workpieces, valve bodies, pistons etc. The workpiece surface can be protected by attaching the plastic elements.Application:The knurled nut on the clamping bracket can be used to preset the chain length and the clamping force. The required torque is set on the clamping hook.Accessory:Steel roller chains for chain clamp sets K1655. Steel turnbuckles for chain clamp sets K1656. Steel prisms for chain clamp sets K1662. Nuts for T-slots DIN 508 enhanced, K0377. Cap screws DIN EN ISO 4762, K0869.Note:- The opening angle of the chain should not exceed 30°. - Do not exceed max. permitted tightening torques.Supplied withChain clamp set K1650.15: - Clamping hook. - Clamping bracket. - 4x roller chains (2x 492 mm, 1x 238 mm, 1x 15.9 mm). - 4x connecting links with cotter pins to connect. - 6x snap-on plastic elements. - Securing set for clamping chains. Chain clamp set K1650.40: - Clamping hook. - Clamping bracket. - 4x roller chains (1x 991 mm, 1x 483 mm, 1x 229 mm, 1x 25.4 mm). - 4x connecting links with cotter pins to connect. - 6x snap-on plastic elements. - Securing set for clamping chains.

Catalogs

No catalogs are available for this product.

See all of HEINRICH KIPP WERK GmbH & Co. KG‘s catalogs
