Steel gas spring K2517.1428 series

stainless steel

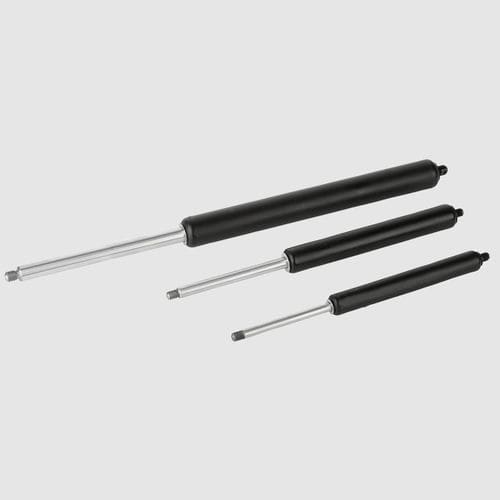

Material Piston rod and pressure tube steel. Fill medium: oil, nitrogen. Version Piston rod, hard chromed. Piston rod Ø4 is stainless steel. Pressure tube painted black. Note Individual filled gas springs are excluded from replacement. Gas springs are maintenance-free, self-contained systems that are filled with nitrogen under high pressure. For end-of-travel damping and lubrication, a defined amount of oil is also contained inside. The gas springs contain a nonreturn valve in a threaded pin on the pressurised pipe, which allows the pushing force to be lowered at a later time. Gas pressure springs in the sizes 04/12 and 06/15 must be stored and installed with the piston rod extending downwards. As of size 08/19, storage and installation in any orientation is possible. Keep in mind, however, that end-of-travel damping is effective only when the piston rod extends downwards. As a consequence of the physical properties when filling a gas spring, a tolerance range of ±5 % results for the rated pushing force. Gas springs are filled with nitrogen under high pressure and under no circumstances should they be opened or overloaded.
