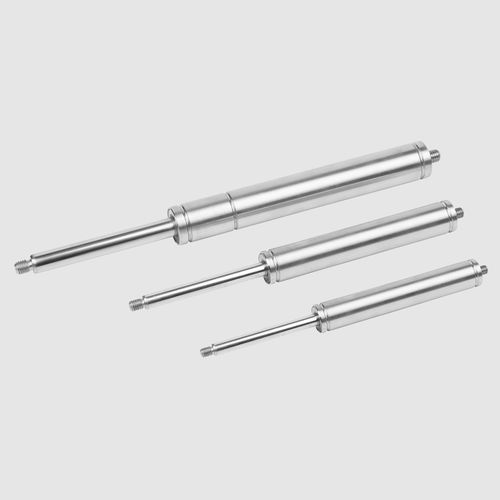

Stainless steel gas spring K2518.1428 series

stainless steelwith hydraulic damping

Material Piston rod, stainless steel 1.4305. Pressure tube, stainless steel 1.4301. Filling medium: oil, nitrogen. Version Piston rod and pressure pipe, bright. Note Individual filled gas springs are excluded from replacement Gas springs are maintenance-free, self-contained systems that are filled with nitrogen under high pressure. There is also an internal defined quantity of oil for end position damping and lubrication purposes. The gas springs contain a check valve in the grub screw of the pressure pipe which enables the extension force to be subsequently reduced. The gas springs must be stored and mounted with the piston rod extending downwards. The physical properties that apply when a gas spring is being filled result in a tolerance range of ±5 % for the rated extension force. Gas springs are filled with nitrogen under high pressure and under no circumstances should they be opened or overloaded.
