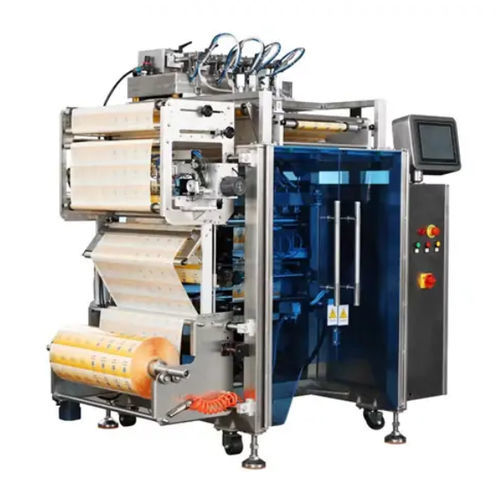

Automatic packaging machine FL series

filmliquidsfor powders

Overview
The multi-lane stick packaging machine is an automatic high-speed stick pack machine for packaging powders, granules, liquids and other free-flowing products into stick-shaped sachets. It performs film unwinding, film pulling, date coding, bag forming, precision weighing/filling, automatic sealing, cutting and discharge of finished packages.

Suitable for

• Sugar
• Coffee powder
• Salt
• Milk powder
• Spices
• Pharmaceutical powders
• Liquid products (e.g., honey, sauces)
• Other free-flowing materials

Technical Parameters (table)
Type: FL-320 / FL-380 / FL-320S
Film width: 120-320mm / 180-380mm / 80-220mm
Bag length: 50-200mm / 60-280mm / 50-200mm
Bag width: 50-150mm / 60-180mm / 30-100mm
Roll film diameter: Max.300mm / Max.320mm / Max.300mm
Packing rate: 20-75bag/min (According to the product conditions)
Film thickness: 0.04-0.07mm / 0.04-0.07mm / 0.04-0.12mm
Power: 220V 50/60Hz 2.2KW / 220V 50/60Hz 2.5KW / 220V 50/60Hz 2.0KW
Machine size (L*W*H): (L)970*(W)680*(H)1950mm / (L)1100*(W)800*(H)2150mm / (L)970*(W)825*(H)2020mm
Machine quality (weight): About 300KG / About 450KG / About 300KG

How it works

• Feeding system conveys powder into the hopper where a precision dosing system measures the required quantity.
• The main packaging unit automatically performs film unwinding, film pulling, date coding and bag forming.
• The measured product is filled into formed bags followed by automatic sealing, cutting and discharge of the finished packages.

FAQs (selected)

• What products can be packaged? Powders, granules and liquids including coffee, sugar, salt, milk powder, spices, drink powder, pharmaceutical products, honey and sauces.
• How many lanes does the machine have? 4-8 lanes.
• Is the machine fully automatic? Yes; it can automatically complete film feeding, forming, filling, sealing, cutting and finished product output.

Caractéristiques / Spécifications techniques

• Denomination commerciale: FL series
• Types/models: FL-320, FL-380, FL-320S
• Film width ranges: FL-320: 120-320mm; FL-380: 180-380mm; FL-320S: 80-220mm
• Bag length ranges: FL-320: 50-200mm; FL-380: 60-280mm; FL-320S: 50-200mm
• Bag width ranges: FL-320: 50-150mm; FL-380: 60-180mm; FL-320S: 30-100mm
• Roll film diameter: FL-320 & FL-320S Max.300mm; FL-380 Max.320mm
• Packing rate: 20-75 bag/min (dependent on product conditions)
• Film thickness: FL-320 & FL-380 0.04-0.07mm; FL-320S 0.04-0.12mm
• Power supply & consumption: all models 220V 50/60Hz; FL-320 2.2KW; FL-380 2.5KW; FL-320S 2.0KW
• Machine dimensions: FL-320 (L)970*(W)680*(H)1950mm; FL-380 (L)1100*(W)800*(H)2150mm; FL-320S (L)970*(W)825*(H)2020mm
• Machine weight: FL-320 ~300KG; FL-380 ~450KG; FL-320S ~300KG
• Lanes: 4-8 lanes
• Application: high-speed stick-shaped sachet packaging for powders, granules and liquids
• Automation level: fully automatic (film feeding, forming, filling, sealing, cutting, output)
