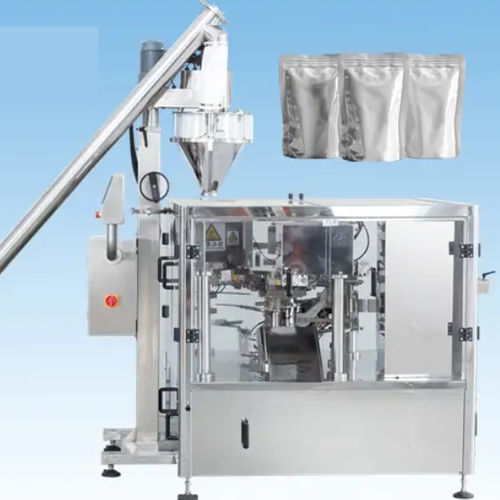

Electrically-operated filling and sealing machine FL-8G series

automaticbagpouch

Product overview
The premade pouch packing machine is an automatic solution for filling and sealing pre-formed bags such as stand-up pouches, zipper bags and three-side seal or vacuum pouches. It handles powders, solids and prepared foods including snacks, nuts, sauces, frozen items, pickles, grains, pet food and ready-to-eat products. Suitable for integration into production lines and for hygienic food handling.

Models and main specifications
Model | FL-8G200 | FL-8G250
Packing speed | 20–55 bags/min | 10–45 bags/min
Bag size (L×W) | 150–320 mm × 100–200 mm | 150–450 mm × 140–270 mm
Bag types | Stand-up, three-side seal, zipper, vacuum and composite bags
Film thickness | 0.04–0.09 mm
Air consumption | 0.8 MPa, 0.5 m³/min
Power supply | 3-phase 4-wire, 380V, 50Hz
Machine dimensions (L×W×H) | 1700×1300×1400 mm | 1900×1450×1500 mm

Features

• Flexible feeding options – Customizable feeding for different powder and product characteristics.
• High-speed capability – Optional high-speed configuration to increase throughput.
• Precision weighing – Auger and metering rods matched to target weights for accurate dosing.
• Scalable configuration – Modular options to align with production speed and layout.
• Versatile sealing choices – Multiple sealing methods to suit bag materials and types.
• Consistent packaging results – Stable mechanical performance for uniform, neat seals and presentation.

Working process
Premade pouch loading → Pouch feeding → Bag opening → Product filling → Sealing → Date/lot printing → Finished product output

Applications
Designed for food industry packaging of powders and solids: snacks, nuts, sauces, powders, frozen foods, pickles, grains, pet food and ready-to-eat items.

Technical specifications

• Model series: FL-8G (FL-8G200, FL-8G250)
• Packing speed: FL-8G200 = 20–55 bags/min; FL-8G250 = 10–45 bags/min
• Bag sizes: FL-8G200 (L)150–320 mm × (W)100–200 mm; FL-8G250 (L)150–450 mm × (W)140–270 mm
• Compatible bag types: Stand-up, three-side seal, zipper, vacuum and composite bags
• Film thickness: 0.04–0.09 mm
• Air consumption: 0.8 MPa, 0.5 m³/min
• Power: 3-phase 4-wire, 380V, 50Hz
• Machine dimensions: FL-8G200 = 1700×1300×1400 mm; FL-8G250 = 1900×1450×1500 mm
• Filling system: Auger dosing with replaceable metering rods for different weights
• Sealing: Multiple sealing options to match bag material and format
