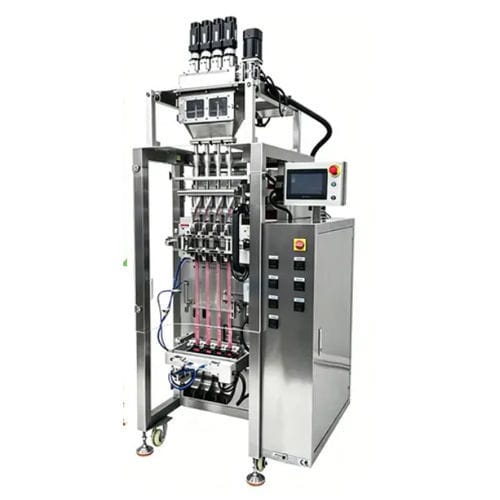

Roll-fed form-fill-seal machine FL series

for packagingfor pharmaceuticals packagingfor food packaging

Product overview
The FL series multi‑lane stick packaging machine is an automatic stick-pack system designed for high-speed packaging of powders, granules and liquids into single-serve stick sachets. It handles film unwinding, forming, filling, sealing, cutting and discharge in continuous operation and is suitable for food, pharmaceutical and industrial free-flowing products such as sugar, coffee, milk powder, spices, pharmaceutical powders, drink powders, honey and sauces.

Technical parameters (by model)

• FL-320 – Film width: 120–320 mm; Bag length: 50–200 mm; Bag width: 50–150 mm; Roll film diameter: Max. 300 mm; Packing rate: 20–75 bags/min (depends on product); Film thickness: 0.04–0.07 mm; Power: 220 V 50/60 Hz 2.2 kW; Size (L×W×H): 970×680×1950 mm; Weight: ≈300 kg.
• FL-380 – Film width: 180–380 mm; Bag length: 60–280 mm; Bag width: 60–180 mm; Roll film diameter: Max. 320 mm; Packing rate: 20–75 bags/min (depends on product); Film thickness: 0.04–0.07 mm; Power: 220 V 50/60 Hz 2.5 kW; Size (L×W×H): 1100×800×2150 mm; Weight: ≈450 kg.
• FL-320S – Film width: 80–220 mm; Bag length: 50–200 mm; Bag width: 30–100 mm; Roll film diameter: Max. 300 mm; Packing rate: 20–75 bags/min (depends on product); Film thickness: 0.04–0.12 mm; Power: 220 V 50/60 Hz 2.0 kW; Size (L×W×H): 970×825×2020 mm; Weight: ≈300 kg.

Main capabilities / suitable products

• High-speed filling and sealing of single-serve stick sachets.
• Compatible with powders, granules, liquids and other free-flowing materials.
• Common applications: sugar, coffee powder, milk powder, spices, pharmaceutical powders, drink powders, honey, sauces.

How it works

• Film unwinding and transport: roll film is fed and pulled to the forming station.
• Dosing and filling: feeding system and precision dosing deliver the measured product to each lane.
• Forming, sealing and cutting: machine forms stick sachets, seals, codes (date/lot) as required, cuts and discharges finished packs.

Additional notes
The machine supports configurable multi‑lane setups (typically 4–8 lanes) and fully automatic operation (film feeding, forming, filling, sealing, cutting, product output). Actual packing rates depend on product characteristics, lane count and production conditions.

Technical specifications (summary)

• Series: FL (FL-320, FL-380, FL-320S)
• Film width range: 80–380 mm (model dependent)
• Bag length range: 50–280 mm
• Bag width range: 30–180 mm
• Roll film diameter: Max. 300–320 mm
• Packing rate: 20–75 bags/min (product dependent)
• Film thickness: 0.04–0.12 mm
• Power supply: 220 V 50/60 Hz; Power consumption: 2.0–2.5 kW
• Machine footprint: see model dimensions
• Typical weight: ≈300–450 kg
• Lane configuration: configurable multi‑lane (4–8 lanes)
