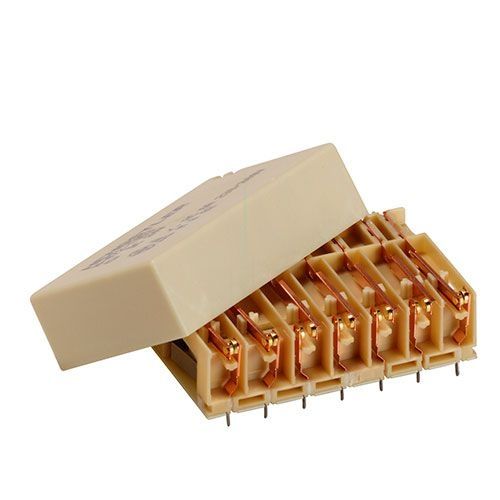

DC electromechanical relay 472
SMDfor printed circuit boardsIEC

DC electromechanical relay
DC electromechanical relay
Add to favorites
Compare this product


Control voltage
for printed circuit boards
Other characteristics
IEC, monostable
Output voltage

Max.: 110 V

Min.: 5 V

Switching current

6 A


7 contacts max. 6 A switching & permanent current Drive is monostable as DC Ambient temperature -25 to +80 °C With forcibly guided contacts to EN 50205, application type A Meets requirements for signal relays under UIC 736e cULus and TÜV approval With its H-472 safety relays, HENGSTLER provides a solution for all those applications that require high component density. The max. height of 15.7 mm enables them to be used in 22.5 mm module housings, for example. The well-designed layout of the relay pins means there is plenty of space at the rear of the circuit board for SMD components. H-472 safety relays conform to EN 50205 standard, Application type A, and IEC EN 61810-1. In addition, these safety relays also meet the requirements for railway signal relays in accordance with UIC 736e.
