DC electromechanical relay 466
for printed circuit boardspowerwith guided contacts

DC electromechanical relay
DC electromechanical relay
Add to favorites
Compare this product


Control voltage
for printed circuit boards
Other characteristics
with guided contacts, monostable, bistable
Output voltage

Min.: 5 V

Max.: 220 V

Switching current

10 A

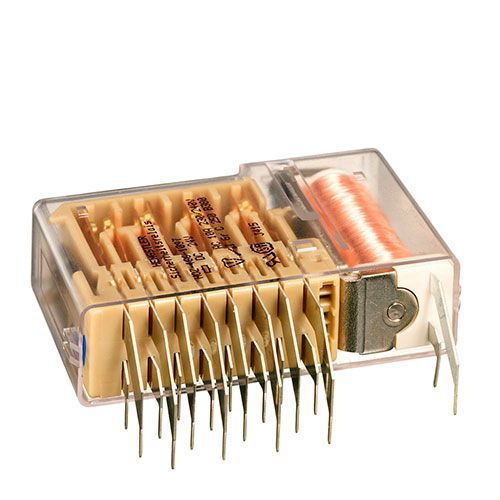

4, 6, 8 or 10 contacts max. 10 A switching and constant current Drive available as DC monostable, DC bistable and as load-current controlled Ambient temperatures -25 to +80 °C Forcibly guided contacts to EN 50205, Application type A Meets requirements for signal relays under UIC 736e cULus and TÜV approvals With its H-466 safety relays, HENGSTLER provides a solution for all those applications that involve a high number of electric switching contatcts. At the same time, the max. installation height of 20.5 mm enables a high component density to be achieved. The safety relay is designed for the highest possible degree of reliability, robustness and a long electrical life-time. As a result, these safety relays can be used wherever high availability is essential, even at high switching loads. The drive system can be supplied as a monostable version either for DC or AC. In addition, the H-466 relay is available as a DC bistable version. For special applications, it is possible to quote solutions in which the load current is fed direct to the relay coil, which enables the correct functioning of the load to be monitored. H-466 safety relays conform to EN 50205 standard, Application type A, and IEC EN 61810-1. In addition, these safety relays also meet the requirements for railway signal relays in accordance with UIC 736e.
