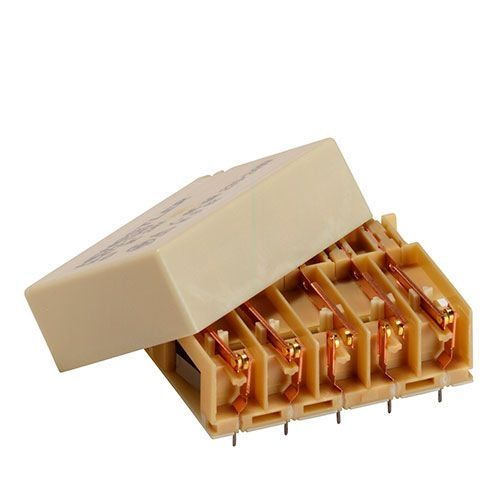

DC electromechanical relay 473
2 NCSMDfor printed circuit boards

DC electromechanical relay
DC electromechanical relay
Add to favorites
Compare this product


Characteristics

Control voltage
DC
Contact configuration
2 NC
Features
SMD
Mounting
for printed circuit boards
Other characteristics
IEC, monostable
Output voltage

Max.: 110 V

Min.: 5 V

Switching current

6 A

Description

5 contacts max. 6 A switching & permanent current Drive is monostable as DC Ambient temperature -25 to +75 °C With forcibly guided contacts to EN 50205, application type A Meets requirements for signal relays under UIC 736e cULus and TÜV approval With its H-473 safety relays, HENGSTLER provides a solution for all those applications that require high component density. The max. height of 15.7 mm enables them to be used in 22.5 mm module housings, for example. The well-designed layout of the relay pins means there is plenty of space at the rear of the circuit board for SMD components. H-473 safety relays conform to EN 50205 standard, Application type A, and IEC EN 61810-1. In addition, these safety relays also meet the requirements for railway signal relays in accordance with UIC 736e.
