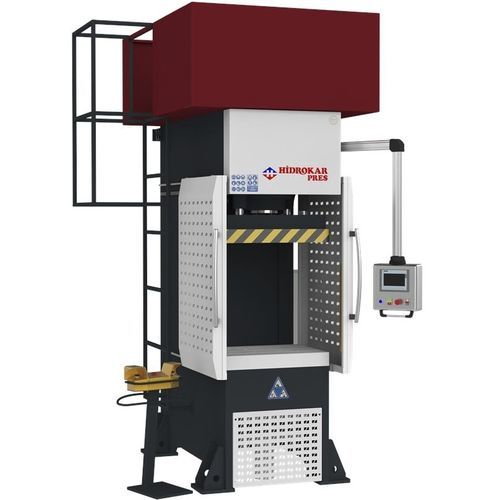

Hydraulic press HSCdrawingdeep drawingstamping
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- stamping, drawing, deep drawing
- Applications
- for sheet metal, for industrial applications, for steel, for hydraulic applications
- Structure
- C-frame
- Control
- fully-automatic, PLC-controlled
- Other characteristics
- double-action
- Force
Min.: 30 tf
Max.: 250 tf
- Opening
Min.: 400 mm
(16 in)Max.: 950 mm
(37 in)- Stroke
Min.: 200 mm
(7.874 in)400 mm, 500 mm, 600 mm
(15.748 in, 19.685 in, 23.622 in)Max.: 800 mm
(31.496 in)- Table width
Min.: 200 mm
(8 in)Max.: 800 mm
(31 in)- Table length
Min.: 500 mm
(20 in)Max.: 900 mm
(35 in)- Max. pressure
Min.: 250 bar
(3,626 psi)- Working speed
Min.: 10 mm/s
10 mm/s
Max.: 15 mm/s
- Return speed
Min.: 50 mm/s
135 mm/s
Max.: 300 mm/s
- Approaching speed
Min.: 50 mm/s
Max.: 250 mm/s
- Weight
Min.: 4,000 kg
(8,818 lb)Max.: 19,000 kg
(41,888 lb)- Overall length
Min.: 1,300 mm
(51 in)1,400 mm, 1,600 mm, 1,900 mm
(55 in, 63 in, 75 in)Max.: 5,000 mm
(197 in)- Overall width
Min.: 1,500 mm
(59 in)1,200 mm, 1,350 mm, 1,600 mm, 1,900 mm
(47 in, 53 in, 63 in, 75 in)Max.: 5,000 mm
(197 in)- Overall height
Min.: 2,700 mm
(106 in)Max.: 4,000 mm
(157 in)
Description
One of the most preferred models in deep drawing presses
HSC model is open on three sides, allowing the workpiece to be easily assembled/disassembled and observed during the operation process. At the same time, the most important feature that distinguishes it from other models is that it has a suitable construction for the connectivity of the sheet driver. Prioritizing customer and operation-oriented production offers customizable production opportunities.
STANDARD FEATURES
Robust Steel Construction
Hydraulic unit requiring minimum maintenance
Emergency stop button
Hydraulic safety system
Electrical safety system
CE certification
User manual
Button control
T-slot table
Adjustable pressure control
Double speed working system
OPTIONAL FEATURES
PLC control system
HMI touch screen
Proportional valve system
Light barrier
Safety cage
Tool box
Stroke indicator
Switch distance limit setting
Linear scale distance limit setting
Lighting led panel
