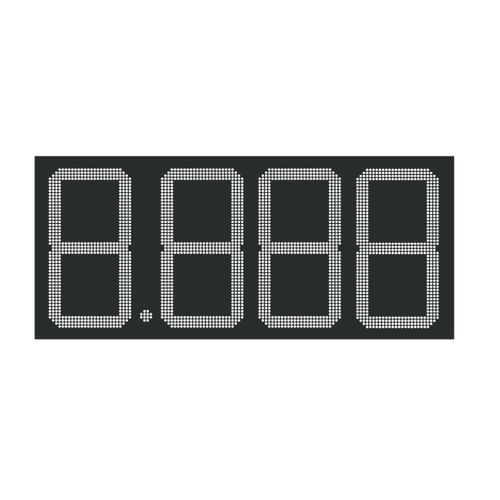

LED display HDP Series

numeric4-digit3-digit

Overview
HDP Series is a family of LED fuel price displays engineered for continuous 24h operation. SMD LEDs are selected for long-term use and protected from UV exposure. Printed circuit boards receive a silicone resin coating to preserve elasticity and prevent cracks or water infiltration. A thermal insulating sun visor shields LEDs and electronic components from direct sunlight and heat.

Model – HDP10
4-digit display with 100 mm character height. SMD LEDs suitable for continuous 24h operation. Boards coated with silicone resin and equipped with a thermal sun visor to protect LEDs and electronics.

• Character height: 100 mm
• Screen dimension: 350 x 190 mm
• LEDs quantity: 202
• LED type: SMD
• Viewing angle: 120°

Model – HDP10P
3-digit display with two digit heights (100 mm and 70 mm for the smallest digit). SMD LEDs designed for continuous 24h operation. Silicone-coated boards and thermal sun visor included.

• Character height: 100 – 70 mm
• Screen dimension: 350 x 190 mm
• LEDs quantity: 173
• LED type: SMD
• Viewing angle: 120°

Model – HDP12
4-digit display with 120 mm character height. SMD LEDs for continuous operation, silicone-coated PCBs and thermal sun visor for component protection.

• Character height: 120 mm
• Screen dimension: 380 x 190 mm
• LEDs quantity: 202
• LED type: SMD
• Viewing angle: 120°

Model – HDP12P
3-digit display with 120 mm main digits and 80 mm smallest digit. SMD LEDs, silicone-coated boards and thermal sun visor supplied.

• Character height: 120 – 80 mm
• Screen dimension: 350 x 190 mm
• LEDs quantity: 173
• LED type: SMD
• Viewing angle: 120°

Model – HDP15
4-digit display with 150 mm character height. Continuous-operation SMD LEDs, silicone resin coated PCBs and thermal sun visor.

• Character height: 150 mm
• Screen dimension: 410 x 204 mm
• LEDs quantity: 234
• LED type: SMD
• Viewing angle: 120°

Model – HDP15P
3-digit display with main digits 150 mm and smallest digit 100 mm. SMD LEDs, silicone-coated boards and thermal sun visor included.

• Character height: 150 – 100 mm
• Screen dimension: 380 x 204 mm
• LEDs quantity: 201
• LED type: SMD
• Viewing angle: 120°

Model – HDP20
4-digit display with 200 mm character height. SMD LEDs for continuous use, silicone-coated PCBs and thermal sun visor to protect electronics.

• Character height: 200 mm
• Screen dimension: 700 x 250 mm
• LEDs quantity: 348
• LED type: SMD
• Viewing angle: 120°

Model – HDP20P
3-digit display with 200 mm main digits and 150 mm smallest digit. SMD LEDs, silicone resin coated boards and thermal sun visor provided.

• Character height: 200 – 150 mm
• Screen dimension: 630 x 250 mm
• LEDs quantity: 320
• LED type: SMD
• Viewing angle: 120°

Model – HDP25
4-digit display with 250 mm character height. Continuous-operation SMD LEDs, silicone-coated PCBs and thermal sun visor included.

• Character height: 250 mm
• Screen dimension: 830 x 300 mm
• LEDs quantity: 452
• LED type: SMD
• Viewing angle: 120°

Model – HDP25P
3-digit display with main digits 250 mm and smallest digit 170 mm. SMD LEDs, silicone-coated boards and thermal sun visor supplied.

• Character height: 250 – 170 mm
• Screen dimension: 730 x 300 mm
• LEDs quantity: 627
• LED type: SMD
• Viewing angle: 120°

Model – HDP30
4-digit display with 300 mm character height. SMD LEDs for continuous 24h operation, silicone-coated PCBs and thermal sun visor for protection.

• Character height: 300 mm
• Screen dimension: 1000 x 360 mm
• LEDs quantity: 720
• LED type: SMD
• Viewing angle: 120°

Model – HDP30P
3-digit display with main digits 300 mm and smallest digit 220 mm. SMD LEDs, silicone resin coated boards and thermal sun visor included.

• Character height: 300 – 220 mm
• Screen dimension: 915 x 360 mm
• LEDs quantity: 627
• LED type: SMD
• Viewing angle: 120°

Model – HDP40
4-digit display with 400 mm character height. Continuous-operation SMD LEDs, silicone-coated PCBs and thermal sun visor to protect LEDs and electronics.

• Character height: 400 mm
• Screen dimension: 1210 x 475 mm
• LEDs quantity: 941
• LED type: SMD
• Viewing angle: 120°

Model – HDP40P
3-digit display with main digits 400 mm and smallest digit 250 mm. SMD LEDs, silicone-coated boards and thermal sun visor provided.

• Character height: 400 – 250 mm
• Screen dimension: 1126 x 475 mm
• LEDs quantity: 810
• LED type: SMD
• Viewing angle: 120°

Model – HDP50
3-digit display with 500 mm character height. Designed for continuous use with SMD LEDs, silicone resin coated PCBs and thermal sun visor.

• Character height: 500 mm
• Screen dimension: 1386 x 565 mm
• LEDs quantity: 1029
• LED type: SMD
• Viewing angle: 120°

Model – HDP50P
3-digit display with main digits 500 mm and smallest digit 250 mm. SMD LEDs, silicone-coated boards and thermal sun visor included.

• Character height: 500 – 250 mm
• Screen dimension: 1268 x 565 mm
• LEDs quantity: 999
• LED type: SMD
• Viewing angle: 120°

Model – HDP75
4-digit display with 750 mm character height. SMD LEDs suitable for continuous operation, silicone resin coated PCBs and thermal sun visor for outdoor protection.

• Character height: 750 mm
• Screen dimension: 1890 x 830 mm
• LEDs quantity: 2428
• LED type: SMD
• Viewing angle: 120°

Model – HDP75P
4-digit display with main digits 750 mm and smallest digit 400 mm. Continuous-operation SMD LEDs, silicone-coated boards and thermal sun visor included.

• Character height: 750 – 400 mm
• Screen dimension: 1728 x 830 mm
• LEDs quantity: 2057
• LED type: SMD
• Viewing angle: 120°

Technical specifications

• Product family: HDP Series
• LED type: SMD (suitable for continuous 24h/day operation)
• Protection: PCBs coated with silicone resin to maintain elasticity and prevent cracks or infiltration
• Sun protection: thermal insulating sun visor protecting LEDs and electronics
• UV resistance: LEDs and construction designed to resist UV exposure
• Viewing angle: 120° (consistent across models)
• Available character heights and screen dimensions: see model-specific entries above
