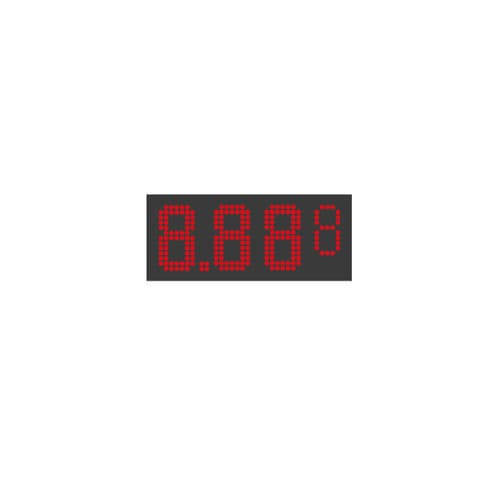

LED display HDP series

graphicnumericfor gas stations

Overview
Series of multisegment LED fuel price displays designed for continuous 24h/day operation and outdoor use at service stations. SMD LEDs with UV resistance ensure long-term visibility. Circuit boards are coated with a flexible silicone resin to prevent cracks and water ingress. A thermally insulating sun visor protects LEDs and electronic components.

Model – HDP120P

• Display with three digits 120 mm height and one digit 90 mm height
• Digit height: 120 mm / 90 mm
• Screen dimension: 393 x 191 mm
• LEDs quantity: 243
• LED type: SMD
• Viewing angle: 120°
• Graphic digits: 26 strokes

Model – HDP168P

• Display with three digits 168 mm height and one digit 120 mm height
• Digit height: 168 mm / 120 mm
• Screen dimension: 574 x 248 mm
• LEDs quantity: 334
• LED type: SMD
• Viewing angle: 120°
• Graphic digits: 26 strokes

Model – HDP238P

• Display with three digits 238 mm height and one digit 168 mm height
• Digit height: 238 mm / 168 mm
• Screen dimension: 784 x 328 mm
• LEDs quantity: 414
• LED type: SMD
• Viewing angle: 120°
• Graphic digits: 26 strokes

Model – HDP336P

• Display with three digits 336 mm height and one digit 238 mm height
• Digit height: 336 mm / 238 mm
• Screen dimension: 960 x 438 mm
• LEDs quantity: 504
• LED type: SMD
• Viewing angle: 120°
• Graphic digits: 26 strokes

Technical specifications

• Common features: SMD LEDs suitable for continuous 24h/day operation; UV resistant
• Protection: circuit boards coated with flexible silicone resin to prevent cracks and water ingress
• Thermal insulating sun visor to protect LEDs and electronic components
• Viewing angle (all models): 120°
• LED type (all models): SMD
• Available models and core dimensions/LED counts: HDP120P (393 x 191 mm, 243 LEDs), HDP168P (574 x 248 mm, 334 LEDs), HDP238P (784 x 328 mm, 414 LEDs), HDP336P (960 x 438 mm, 504 LEDs)
