LED display MSG

colorgraphic10 mm pitch

General description

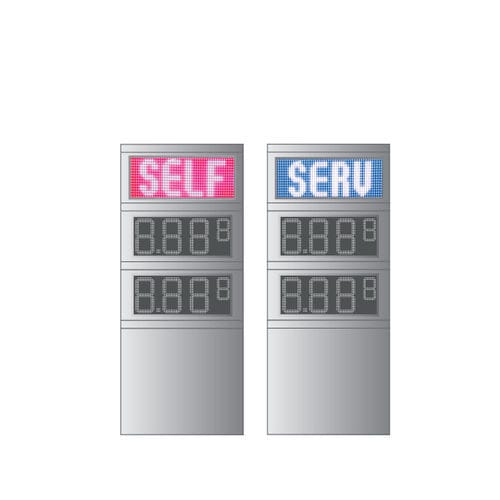

MSG Series LED panels provide graphic messaging for mini-totems at petrol stations. Available in 7-color RGB (HGM7 series) and full-color 16-million variants (HGMV series). Designed for synchronized operation with DIS and HDP fuel LED price displays. Messages are stored in onboard memory and selected via RDC remote control. Brightness is synchronized with fuel price displays to ensure consistent appearance.

Model: HGM7-16X16-P10 i K

• Resolution: 16×16 pixel
• Pitch: 10 mm
• LED per pixel: 1
• Screen dimension: 160×172 mm
• Colors: 7-color RGB
• LED quantity: 256 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Screen finishing: Front panel

Model: HGM7-32X16-P10 i KM (K)

• Resolution: 32×16 pixel
• Pitch: 10 mm
• LED per pixel: 1
• Screen dimension: 320×210 mm (320×172 mm)
• Colors: 7-color RGB
• LED quantity: 512 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Screen finishing: Front panel (Without front panel: K)

Model: HGM7-48X16-P10 i KM (K)

• Resolution: 48×16 pixel
• Pitch: 10 mm
• LED per pixel: 1
• Screen dimension: 480×210 mm (480×172 mm)
• Colors: 7-color RGB
• LED quantity: 768 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Screen finishing: Front panel (Without front panel: K)

Model: HGM7-80X32-P10 i KM

• Resolution: 80×32 pixel
• Pitch: 10 mm
• LED per pixel: 1
• Screen dimension: 800×360 mm
• Colors: 7-color RGB
• LED quantity: 2650 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Screen finishing: Front panel

Model: HGM7-48X16-P16 i KM

• Resolution: 48×16 pixel
• Pitch: 16 mm
• LED per pixel: 1
• Screen dimension: 480×305 mm
• Colors: 7-color RGB
• LED quantity: 768 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Screen finishing: Front panel

Model: HGM7-96X16-P16 i KM

• Resolution: 96×16 pixel
• Pitch: 16 mm
• LED per pixel: 1
• Screen dimension: 1536×305 mm
• Colors: 7-color RGB
• LED quantity: 1536 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Screen finishing: Front panel

Model: HGMV-64X32-P6 i

• Resolution: 64×32 pixel
• Pitch: 6 mm
• LED per pixel: 1
• Screen dimension: 384×192 mm
• Colors: 16 million (full color)
• LED quantity: 2048 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Box: Omega aluminum support

Model: HGMV-192X32-P8 i

• Resolution: 192×32 pixel
• Pitch: 8 mm
• LED per pixel: 1
• Screen dimension: 384×192 mm
• Colors: 16 million (full color)
• LED quantity: 6144 pcs
• LED type: SMD, RGB; visibility angle: 120°
• Box: Omega aluminum support

Technical specifications

• Message storage in display memory; selectable via RDC remote control
• Brightness synchronized with DIS/HDP fuel LED price displays
• LED type: SMD RGB; visibility angle: 120°
• Available pitches: 6 mm, 8 mm, 10 mm, 16 mm (model-dependent)
• Color options: 7-color RGB panels (HGM7) and full color 16 million (HGMV)
• Screen finishing: front panel standard; suffix 'K' indicates variant without front panel
• Mechanical support/box: Omega aluminum support on specified models
• LED counts, resolutions and physical dimensions vary by model (see individual model specs above)
