LED display DIS Series

numeric4-digit3-digit

Overview DIS Series LED displays. SMD LEDs suitable for continuous operation 24h/day, resistant to UV sun rays exposure. The boards are coated with a special silicone resin that keeps it elastic over time avoiding cracks and infiltrations. A thermal insulating sun visor protects the LEDs and electronic components.

Model – DIS25 SMD Display with 4 digits 250 mm height.

• Character height: 250 mm.
• Screen dimension: 920 x 309 mm.
• LEDs quantity: 452
• LED type: SMD
• Viewing angle: 120°

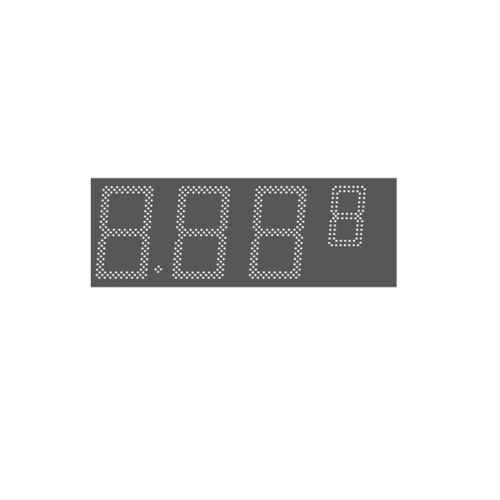

Model – DIS25P SMD Display with 3 digits 250 mm height and the smallest digit 150 mm height.

• Character height: 250 – 150 mm.
• Screen dimension: 920 x 309 mm.
• LEDs quantity: 417
• LED type: SMD
• Viewing angle: 120°

Model – DIS31 SMD Display with 4 digits 310 mm height.

• Character height: 310 mm.
• Screen dimension: 1004 x 360 mm.
• LEDs quantity: 652
• LED type: SMD
• Viewing angle: 120°

Model – DIS31P SMD Display with 3 digits 310 mm height and the smallest digit 200 mm height.

• Character height: 310 – 200 mm.
• Screen dimension: 1004 x 360 mm.
• LED quantity: 574
• LED type: SMD
• Viewing angle: 120°

Technical specifications

• SMD LEDs suitable for continuous 24h/day operation
• LEDs resistant to UV sun rays exposure
• Boards coated with a special elastic silicone resin to avoid cracks and infiltrations
• Thermal insulating sun visor to protect LEDs and electronic components
• Viewing angle: 120°
• Available character heights: DIS25 = 250 mm; DIS25P = 250 / 150 mm; DIS31 = 310 mm; DIS31P = 310 / 200 mm
• Screen dimensions: DIS25 / DIS25P = 920 x 309 mm; DIS31 / DIS31P = 1004 x 360 mm
• LED quantity examples: DIS25 = 452; DIS25P = 417; DIS31 = 652; DIS31P = 574
• LED type: SMD
