Wireless data transmission system CT100-W

System overview

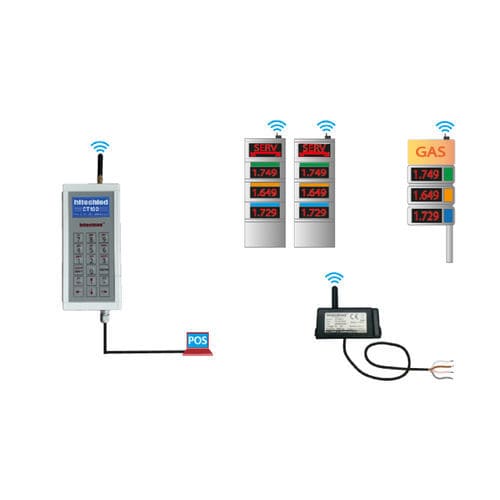

The system comprises a handheld unit CT100-W which, when connected to the POS, reads product prices and transmits them wirelessly to flags, totems and all LED price displays equipped with the WT868-O receiver. The CT100-W continuously broadcasts prices via radio frequency to keep displays synchronized in real time.

Main features

• Handheld price detector: CT100-W.
• Receiver for displays: WT868-O.
• Wireless radio-frequency transmission of price data to compatible displays (flags, totems, LED price displays).
• Continuous price broadcasting for real-time synchronization.

POS connectivity

• Connection options to POS: RS232.
• Connection options to POS: RS422.
• Connection options to POS: RS485.

Communication and protocols
The CT100-W supports selectable communication protocols toward the POS; protocol selection is available from the CT100-W handheld unit.

Applications

• Automatic wireless updating of fuel price displays at petrol stations (flags, totems and LED price displays compatible with the WT868-O receiver).

Technical specifications

• Product type: Wireless system for fuel LED price displays.
• Handheld unit: CT100-W (reads POS prices and transmits them).
• Receiver for displays: WT868-O.
• POS interfaces: RS232, RS422, RS485.
• Transmission: Continuous radio-frequency sending of price information.
• Target devices: Flags, totems and LED price displays compatible with WT868-O receiver.
• Protocol selection: Communication protocols toward the POS selectable from the CT100-W handheld.
