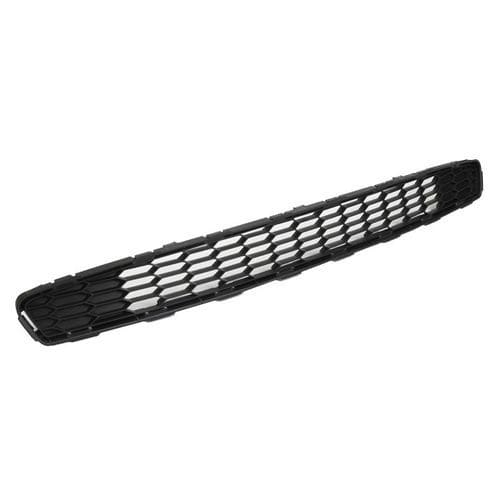

Introduction to Large Injection Molded Parts
Large injection molded parts are produced by injecting molten thermoplastic into a mold to obtain repeatable plastic components for high-volume applications, notably in the automotive sector. Typical lead time for delivery: 100 days.

Overview

• Name: Large Plastic Injection Molded Parts
• Mold Cavity: 1
• Application: Automotive application
• Delivery: 100 days

Advantages of Large Injection Molded Parts

• Cost-efficiency at high volumes due to low unit cost
• High production rate suitable for mass production
• Design flexibility allowing complex geometries and tight tolerances
• Wide material and color options
• Consistent repeatability across production runs
• High level of automation to reduce manual intervention
• Good dimensional accuracy
• Acceptable surface finish compatible with downstream processes

Production method of Large Injection Molded Parts

• Samples / Drawing & Requirements: Review customer drawings and sample parts to define specifications.
• Mold Design: Collaborate with the customer to finalize mold structure and gating.
• Material Purchase: Procure appropriate steel and tooling components for the mold base.
• Mold Assembly: Assemble mold components with experienced technicians.
• Mold Inspection: Perform in-process inspections and quality checks.
• Mold Testing: Conduct trial runs, provide test reports with sample inspection results and injection parameters.
• Customer Confirmation: Obtain customer approval before full production.
• Finishing: Apply required surface treatments and finalize mold before packing.
• Additional Services: Provide other mold types on request (blow molds, silicone molds, die-casting molds).

Production Advantages

• Machine: Precision injection molding machines for stable production.
• Material: Materials supplied with certificates to meet customer requirements.
• Method: Quality systems implemented (IATF 16949:2016 & ISO 13485:2015) with structured defect and reliability analysis.
• Manpower: Skilled tooling staff with significant experience (10% >15 years, 70% >8 years).

Technical characteristics / Specifications

• Mould core: P20, NAK80, SKD11, S316, S50C, S45C, 718H, 718 or customer-specified
• Mould base: LKM, HASCO, DME or per customer requirement
• Type of plastic mold: 3-plate mold, 2-plate mold
• Cavity: Single/Multi 1*1, 1+1, 1*2, 1+1+1, etc.
• Gate mode: Fan gate, Sub gate, Pin point gate, Valve gate
• Ejection system: Stripper plate, Lifter, Push bar, Ejection pin, etc.
• Runner: Hot runner / cold runner
• Plastic materials: HDPE, PP, Nylon, PEEK, LDPE, ABS, PE, PTFE, PEI, etc.
• Mould life: 300,000–1,000,000 shots
• Lead time for mold: 15–35 days after deposit received
• Specification: According to final 3D drawing
• Packaging details: Wrapped with film for rust protection and packed in wooden case
