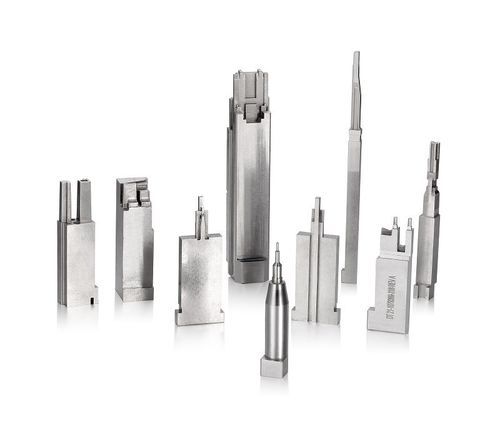

Tungsten insert

threadedsteelcustom

Product

• Product: custom mold inserts
• Material: Tungsten steel
• Surface: Heat treatment
• Tolerance: ±0.002 mm
• Application: Stamping mold
• Purchasers: Japan

Description
We produced over 100 precision mold inserts, including cavities and cores, for a Japanese client. Production combined CNC machining, wire EDM and surface grinding to achieve tight dimensional control down to ±0.002 mm. Parts ranged from a few millimetres to 500 mm in length. Detailed inspection reports and test results covering dimensions, tolerances, surface finishes and material analysis were supplied.

Project details

• Item Name: Stamping tooling component
• Dimension: from a few millimetres up to 500 mm
• Craftsmanship: Wire cutting
• Finish: Grinding and polishing
• Price: Factory price — contact for quotation
• Packing: Foam protection
• Services: OEM or ODM available

Manufacturing process

• [Tooling design] 3D modelling with CAD software
• [Engineering meeting] Project confirmation by professional engineers
• [CNC machining] Roughing and creating the basic geometry
• [EDM machining] Forming precise geometries and features
• [PG] Removing surface defects and irregularities
• [Polishing] Improving surface finish and performance
• [QC & IPQC] In-process and final inspections to ensure tolerances
• [Package & Deliver] Packaging and shipping per customer requirements

Surface finish capability

• Heat treatment
• Nitriding
• Polish Ra 0.1
• Anodized
• Ultra-cold treatment
• CV
• Chrome-plated
• Coated Al
• TiCN coat
• EP.cr3hd
• Blackened

Technology

• Assembly
• CNC machining
• In-mold welding
• Metal stamping
• PG
• Progressive stamping dies
• QC / IPQC
• Wire EDM

Quality and inspection
Comprehensive inspection reports and test data were provided, documenting dimensions, tolerances, surface finishes and material analysis to verify compliance with specifications.

About HLC
HLC specialises in stamping and tooling. The engineering team designs and develops molds according to client requirements and supplies high-precision mold components using advanced manufacturing techniques.

Technical specifications

• Material: Tungsten steel
• Tolerance: ±0.002 mm
• Size range: from a few millimetres up to 500 mm in length
• Manufacturing methods: CNC machining, EDM, surface grinding, wire cutting, polishing
• Surface treatments: Heat treatment, Nitriding, Polish Ra 0.1, Anodized, Ultra-cold treatment, CV, Chrome-plated, Coated Al, TiCN coat, EP.cr3hd, Blackened
• Craftsmanship: Wire cutting, Grinding, Polishing
• Packing: Foam protection
• Services: OEM or ODM available
• Application: Stamping mold
