Control electrical enclosure DIN railABSPC
Add to favorites
Compare this product
Characteristics
- Function
- control
- Configuration
- DIN rail
- Material
- PC, ABS, polyamide
- Application
- industrial
- Width
Max.: 2,000 mm
(78.7 in)Min.: 0.5 mm
(0 in)- Height
Max.: 9,000 mm
(354.3 in)Min.: 1 mm
(0 in)- Depth
Max.: 3,000 mm
(118.11 in)Min.: 0 mm
(0 in)
Description
Overview

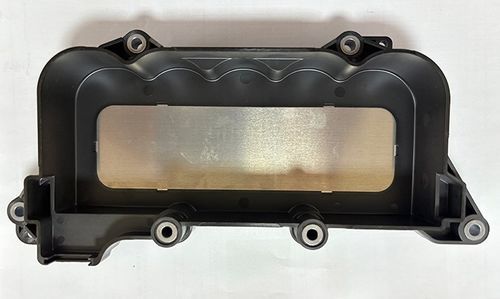

This injection-molded plastic electronic housing is designed for electronic control units (ECU) and industrial modules. The structure integrates precision plastic molding with a metal shield plate to improve rigidity and electromagnetic shielding performance. Multiple mounting points ensure stable installation and long-term durability under vibration conditions.
Key Features
Applications
Technology / Manufacturing Capabilities
Product Description Details
The housing integrates precision plastic molding combined with a metal shield plate to enhance structural rigidity and electromagnetic shielding performance. It is engineered to withstand vibration conditions with multiple mounting points and long-term durability considerations. Production includes insert assembly where required to integrate metal components and shielding.
Characteristics / Technical Specifications
This injection-molded plastic electronic housing is designed for electronic control units (ECU) and industrial modules. The structure integrates precision plastic molding with a metal shield plate to improve rigidity and electromagnetic shielding performance. Multiple mounting points ensure stable installation and long-term durability under vibration conditions.
Key Features
- Material options: PA66, ABS, PC, or custom engineering plastics
- Integrated metal shield plate for improved rigidity and EMI shielding
- Multiple mounting points for secure installation and vibration resistance
- Manufacturing: injection molding with insert assembly
- Surface finish options: matte, textured, or custom finishes
Applications
- Automotive ECUs
- Control modules
- Industrial electronics and electronic control units
Technology / Manufacturing Capabilities
- Assembly
- CNC machining
- In-mold welding
- Metal stamping
- Progressive stamping dies
- Wire EDM
- Quality control procedures (QC / IPQC)
Product Description Details
The housing integrates precision plastic molding combined with a metal shield plate to enhance structural rigidity and electromagnetic shielding performance. It is engineered to withstand vibration conditions with multiple mounting points and long-term durability considerations. Production includes insert assembly where required to integrate metal components and shielding.
Characteristics / Technical Specifications
- Material: PA66 / ABS / PC / custom engineering plastics
- Tolerance: ±0.05 mm – ±0.1 mm
- Surface Finish: Matte / Texture / Custom
- Application: Automotive ECU / Control Modules / Industrial Electronics
- Manufacturing Process: Injection molding with insert assembly
- Integrated metal shield plate for EMI shielding and rigidity
- Design: multiple mounting points for vibration resistance and secure installation
