Introduction

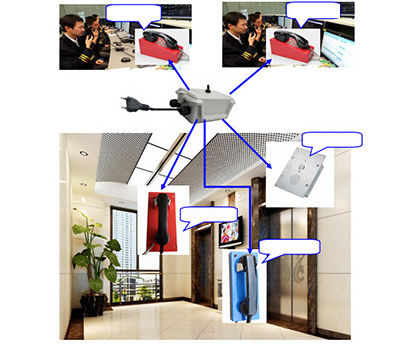

The elevator Intercom system will be applied to elevator emergency or maintenance application. Also applicable for shipping center, bus terminal, car park center, tunnel construction, etc. Power supply: Centralized DC 12V or AC 110~220V AC.

Operating Instructions

• Master station call elevator phone: Pick up the master station handset, press the elevator phone number and speak to it. Press * to speak to all elevator phones. Elevator phone will auto stop when master station hangs up.
• Elevator phone call Master station: Press call button or pick up handset, the phone will automatically call master station. Both master stations will ring. Elevator phone will auto stop when master station hangs up.
• Master1 call Master2: Pick up the handset of Master1, then press the other master station phone number, Master2 rings and you can speak to it.

Specification

• Working Voltage: DC 12V
• Operating Current: 300mA
• Maximum Power Consumption: 2W
• Noise Voltage: 10mV
• Communication Distance: 2000 m
• Ringing Level: 70 dB

Working Condition

• Ambient Temperature: -40°C to 60°C
• Relative Humidity: 30% to 95%
• Ambient Noise: 60 dB
• Line Number: double core line
• Wire description: single line resistance must not exceed 50 Ohm

Wire requirements
Require all connecting the same line; multicore parallel lines can meet general engineering requirements. When cable routing is close to strong power lines or in severe interference environments, shielding measures should be adopted, keep distance and maintain more than 30 cm separation.

CERTIFICATION

• EMC: EN50121 (Railway application - Electromagnetic Compatibility)
• EN55022: emissions
• EN55024: immunity
• Ingress Protection: GB4208-93 IP66
• FCC
• ITU-T Recommendations K21

Packing details

• 1 pcs in each inner CTN box; size: 43.3 x 27.6 x 19.1 cm; G.W: 4 kg
• 4 pcs in outer CTN box; size: 56.6 x 44.5 x 42 cm; G.W: 20.25 kg
• 20GP: 3000 PCS; 40GP: 6000 PCS; 40HQ: 7000 PCS

caractéristiques / spécifications techniques

• Model: Five way intercom with Master
• Working Voltage: DC 12V
• Operating Current: 300mA
• Maximum Power Consumption: 2W
• Noise Voltage: 10mV
• Communication Distance: 2000 m
• Ringing Level: 70 dB
• Ambient Temperature: -40°C to 60°C
• Relative Humidity: 30% to 95%
• Ingress Protection: IP66
• Line: double core line; single line resistance must not exceed 50 Ohm
