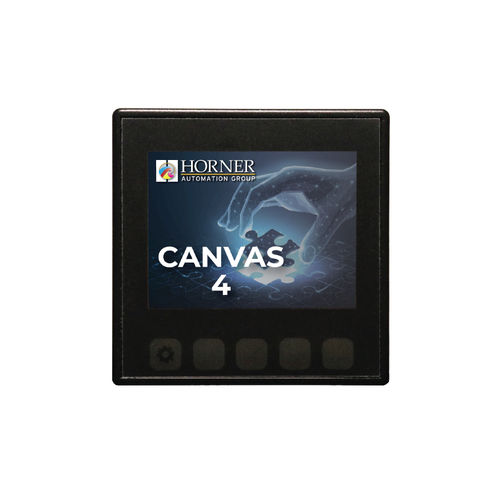

HMI with keyboard Canvas 4

DIN rail320 x 240TFT LCD

The Canvas 4 sets the standard for functionality and performance. All units feature a built-in logic engine, operator interface, networking and I/O. All-new graphics engine built with Cscape 10 enhanced graphics Multi-core SOM with dedicated logic and graphics cores Bright 3.5” QVGA (320×240) display with 5 physical function keys 6 I/O configurations for up to 42 I/O points onboard Ethernet, RS-232/485 and CAN ports, 2MB Logic Memory ¼ DIN cutout or DIN-Rail mountable, USB-A or Micro SD for data storage Online Programming and MQTT support, as well as improved WebMI features All Canvas models include WebMI+, MQTT, Enhanced IEC and J1939 features included as standard. Networking features include: (1) Built-in 10/100 Ethernet port (1) Integrated CAN port that supports either CsCAN, CANopen, J1939 or DeviceNet Scanner
