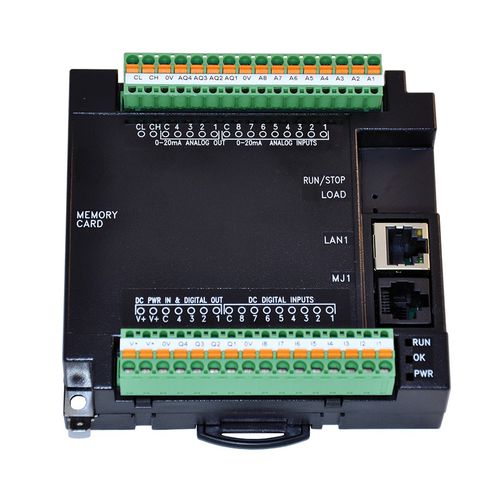

Compact PLC RCC972

DIN railpanel-mountanalog inputs

The Remote Compact Controller (RCC) is a compact controller ideal for applications where a screen-less controller is the best fit. RCC972 – RCC Controller with eight (8) Digital inputs compatible with 12V/24VDC – four (4) DC Outputs – .5A per point – Eight (8) 12-bit Analog Inputs 0-20mA and four (4) 12-bit Analog outputs 0-20mA 8 digital DC inputs, 4 digital outputs, 8 Analog Inputs and 4 analog outputs, providing users with superior I/O options for a wide range of Process and Discrete Manufacturing applications Provides superior connectivity – supporting both CAN and 10/100 Ethernet as standard Inclusion of CAN provides the ability for the RCC to support hundreds of remote I/O points using Horner’s CsCAN CONTROLLER Program Memory Size - 128 KB Floating Point Support - Yes AutoTune PID Capable - Yes Logic Scan Rate - 0.04 mS/K Removable Media - microSD I/O DC Digital Input Voltage Range - 12 VDC / 24 VDC Analog Outputs per Module - 4 (0-20 mA) %AQ Full Scale - 0 – 32,000 counts Analog Output Response Time - One update per ladder scan Analog Output Conversion Rate - All channels converted once per ladder scan General Purpose Registers (words) - 50000 General Purpose Internal Coils (bits) - 32768 (16384 retentive)
