compact gas control unit
HP 200

Add to MyDirectIndustry favorites
compact gas control unit compact gas control unit - HP 200
{{requestButtons}}

Characteristics

  • Applications:

    compact

Description

The cylinder station HP 200 is a single stage cylinder station. It serves the safe supply of
high purity gases and gas mixtures from single or bundled cylinders.

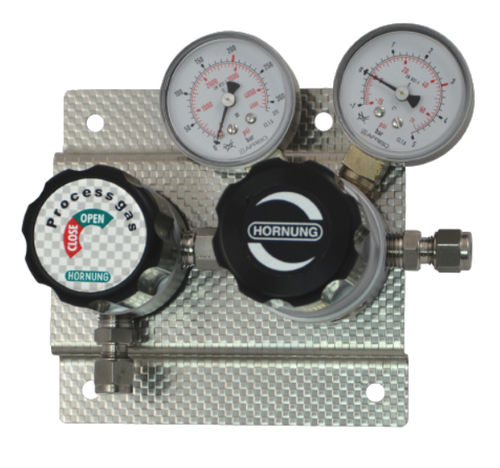

The station is mounted on a stainless steel wall bracket and consists of one pressure
regulator with in- and outlet pressure gauges and an inlet pressure shut-off valve for the
process gas.
Special characteristics:
The HP 200 is our most compact cylinder station.
All required components are mounted on a 140 mm wide stainless steel wall bracket, which makes the station very space-saving.
Especially for gases with high requirements on purity to 6.0. secure and leak proof.
Through our special cleaning system our pressure regulators are suitable for ECD –
applications.
