gas control unit

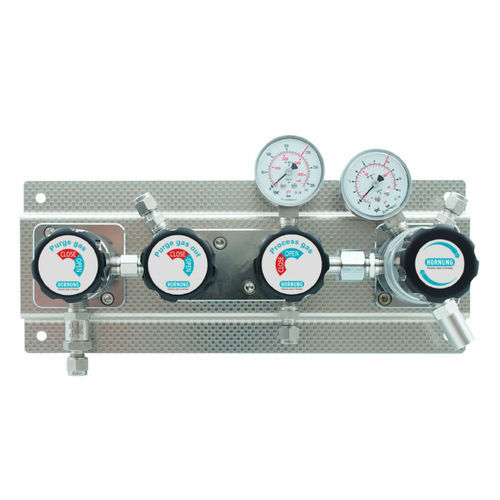

The HP 236 is a single stage panel for central gas supply with external purging. It serves the safe supply of pure and mixed gases from single or bundled cylinders.
The station is mounted on a stainless steel console consisting of a pressure Regulator with in and outlet pressure gauges as well as a relief valve and shut-off valve for the process gas and purge gas.
Modular design of the pressure regulator and multifunction block. Assembly and disassembly of all fixtures from the front.
Diaphragm shut-off valve in block design for process and purge gas with open and close display. Expandability for 1x2 cylinder / bündle is already integrated.
Especially for gases with high requirements on purity to 6.0. secure and leak proof. With options like contact gauges and gas alarm boxes (see segment 7) the supply concept can be optimised further.
Through our special cleaning system our pressure regulators are suitable for ECD – applications.
