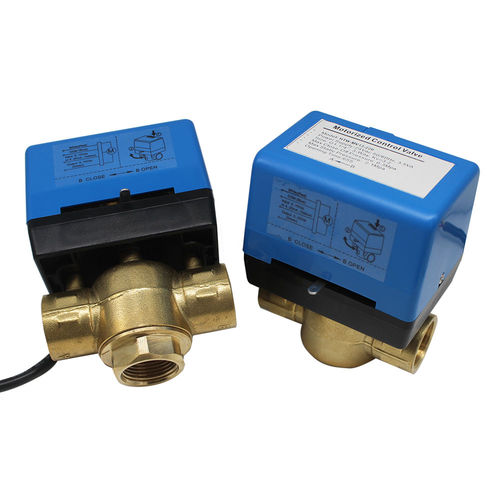

Modulating valve HTW-MV13 series

ballelectrictemperature control

HTW-MV13 series ball valve actuator is using bi-directional motor. It is mainly used in central air-conditioning system, heating system, water treatment, and production industry to control the flow of chilled/hot medium >> Features * Bi-directional floating proportional control; * High precision and sensitivity of temperature control; * Various AC voltages for selection, such as 24V, 110V and 220V, etc.; * Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life; * Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal. * The valve actuator and valve body is used tight lock connection. The actuator can be installed after the installation of valve body. It has flexible and convenient assembly.
