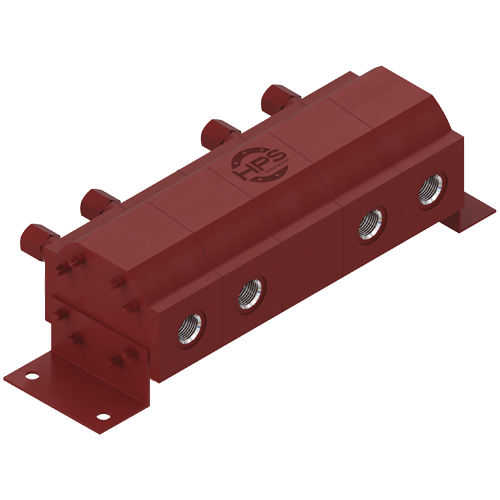

Gear flow divider DR1-4

4-wayhydraulicsteel

Flow divider, steel body 6.... up to 59,22 l/min, 210 bar. Synchronization of the movements of 4 cylinders. The Rotary Gear Flow Dividers allow to control accurately the movement on 2 or 4 cylinders either single or double acting. • Each geared section is connected by a common axis, the rotating speed is the same for each section and the flow is proportional to the displacement in every chamber. • Differential Relief Valves: Our modular design allows us to add differential relief valves in each section of our flow dividers. They also serve to protect the flow divider against excessive differential pressure in the divider which could be caused by actuators becoming stalled or restricted. These valves couldn't be used as general dump valve of the system.
