Water chiller

oilindustrialwater-cooled

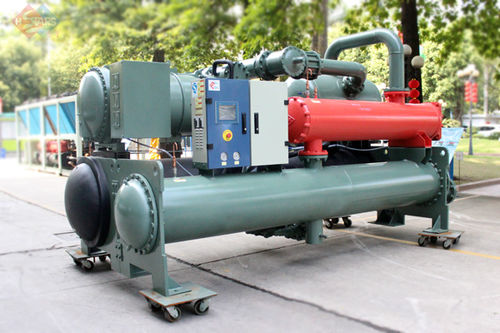

Flooded And Screw Type Water Cooled Industrial Chiller 40STD series Flooded type screw water-cooled industrial chiller adopts high-efficiency twin-screw compressor, self-developed and manufactured high-efficiency Flooded type evaporator, R22, R134a refrigerant, can reach 5.5. The unit has 20 standard specifications. Flooded And Screw Type Water Cooled Industrial Chiller Profile 40STD series Flooded type screw water-cooled industrial chiller adopts high-efficiency twin-screw compressor, self-developed and manufactured high-efficiency Flooded type evaporator, R22, R134a refrigerant, can reach 5.5. The unit has 20 standard specifications. Brand: H'Stars Cooling capacity range: 443KW ~ 3484KW Application range: Large industrial and commercial places Advantage (1) It adopts 5:6 twin-screw Flooded type compressor, which is stable in operation, low in noise and long in motor life. (2) Adopting the self-developed high-efficiency Flooded Type evaporator, the evaporation form is flooded type, the evaporation temperature can reach 5 °C, and COP reaches 5.5. (3) High-efficiency oil separator using impact and interception oil separation technology. There are thousands of grades. (4) Adopting evaporator ejector oil return technology, no moving parts, no energy consumption, stable and energy saving. (5) A throttling device using a well-known brand electronic expansion valve. (6) Optional microcomputer control, PLC control; expandable network function, can provide remote monitoring and after-sales service. (7) Optional independent research and development of patented heat recovery device to obtain free hot water.
