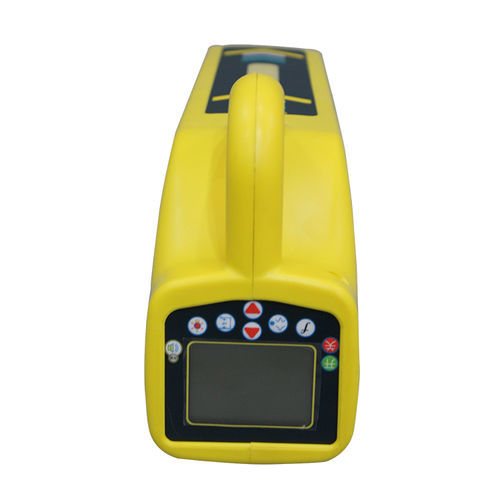

Cable locator HZ-4000B

pipeunderground pipeGPS

The HZ-4000B is an underground cable and pipeline locator by Huazheng Electric, engineered to trace routes, pinpoint fault points and measure burial depth of pipelines, power and optical cables without excavation. It is adapted for pipeline inspection, maintenance, municipal planning and power network management.
Main features

• Transmitter with three connection modes: inductive, direct and clamp; adjustable output up to 10 W.
• Receiver detects position, route, depth and applied current; left/right and forward/back arrows plus dB readout for rapid fault indication.
• Backlight for low‑light operation; optional GPS for automatic mapping and optional professional data‑analysis software with automatic report generation.
• HZ-4000B capability: locate coating-breakdown points on pipelines and outer‑layer damage on electric cables; insulation fault detection.
• Integrated multimeter functions: measure output voltage, line voltage, line current, impedance and power; perform continuity and insulation tests before and after fault finding.
• External induction clamp available when direct signal application is not possible; multiple location modes (valley/peak/broad‑peak/peak‑arrow) for cross‑checked accuracy.

Positioning and depth measurement

• Depth methods: dual‑level coil direct reading; single‑level coil 80% and 50% methods; 45 method for cross verification.
• Typical positioning depth up to 6 m depending on model and conditions (some variants indicate 3 m).

Frequencies & interference immunity

• Transmitter frequencies (model dependent): 128 Hz, 512 Hz, 1 kHz, 2 kHz, 8 kHz, 33 kHz, 65 kHz, 83 kHz.
• Receiver supports radio, 50 Hz, 100 Hz, 128 Hz, 512 Hz, 1 kHz, 2 kHz, 8 kHz, 33 kHz, 65 kHz, 83 kHz.
• Anti‑interference measures include measurement of horizontal/vertical components and horizontal gradient and large adjustable transmitter power for disturbed environments.

Operation & power

• Intuitive graphical display showing real‑time parameters and signal strength; automatic switching to two‑level antenna mode and receiver sensitivity adjustment during depth measurement.
• High‑capacity lithium batteries in transmitter and receiver provide long continuous operation (typical full‑day field use); device can be powered by adapter if needed.

Technical specifications

• Model: HZ-4000B (variants available; see product table for model‑frequency index).
• Available variants/examples: A, B, C, D, E (location‑frequency index varies by variant).
• Transmitter output: up to 10 W (adjustable); positioning depth up to 6 m (model dependent).
• Supported transmitter/receiver frequencies, passive modes and features vary by model; optional GPS and professional analysis software; lithium battery power.
