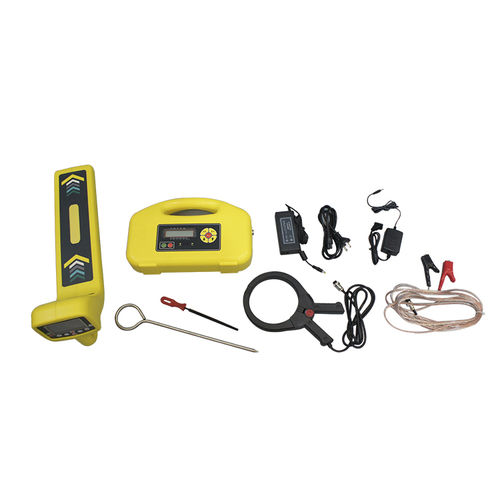

Fiber optic fault locator HZ-4000E

for cables

The HZ-4000E Underground Cable Fault Detector is designed to accurately locate underground pipelines, power cables, and optical fibers, as well as to measure their buried depth without excavation. It can precisely identify coating damage points on metal pipelines and fault points on buried cables.
 This instrument is widely used in underground metal pipeline detection, pipeline maintenance, municipal planning and construction, and power supply departments. It is an essential tool for pipeline operation and maintenance units.
Key Functions
1. Transmitter Functions
Three connection modes: inductive, direct, and clamp connection
Suitable for different working conditions and pipeline environments
2. Receiver Functions
Locates the position, route, buried depth, and current of underground pipelines and cables
3. Precise Fault Positioning
Left and right arrows indicate the exact pipeline position
Front and rear arrows dB value indicate the location and severity of coating damage
4. Night Operation
Backlight display allows clear operation in low-light and nighttime conditions
5. GPS (Optional)
Built-in GPS for pipeline geolocation and automatic pipeline mapping
6. Data Analysis Software (Optional)
Professional software for automatic data analysis and test report generation
7. Unique HZ-4000 Feature
Accurately locates breakdown points
Pipeline breakdown: coating damage
Cable breakdown: outer insulation damage
Enables insulation condition evaluation of underground pipelines and cables
8. Current Measurement
Measures the signal current applied to the pipeline or cable by the transmitter.
