Curved formwork RONDA®

wall

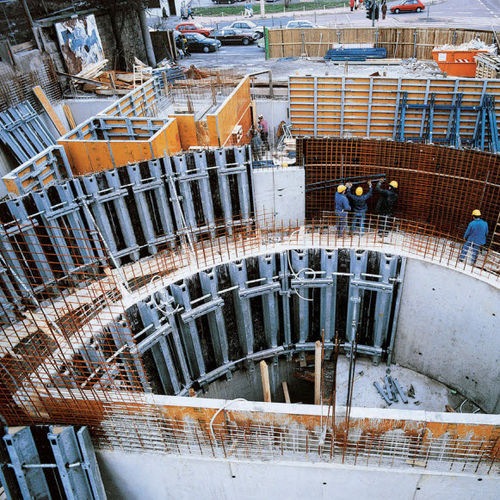

RONDA is your radius-adjustable circular formwork which consists of ready-to-use shuttering elements. The no. 1 choice for forming curved walls. By using the integrated spindle system, the rugged, ready-to-use elements can be precisely adjusted to any desired radius upward of 2.75 m. Work productively Short forming times due to ready-to-use elements available in 2 different widths and 3 heights 30 m² transferable via crane with no additional bracing Low transport volumes and great stackability as a result of the minimum element thickness of only 21 cm Easy height extensions with the MANTO aligning panel clamp Inner and outer elements available in various heights Additional edge protection of the formwork facing with MANTO edge profiles on the outside Work safely Millimeter-precise radius adjustment using turnbuckles and fine-tune alignment thanks to lever edge on profiles Height extensions can be made using the aligning panel clamp from MANTO The element connector is easy to use and allows timber adjustments of up to 15 cm Easy turnbuckle operation using an open-ended spanner or tie rod (< Ø18 mm)
