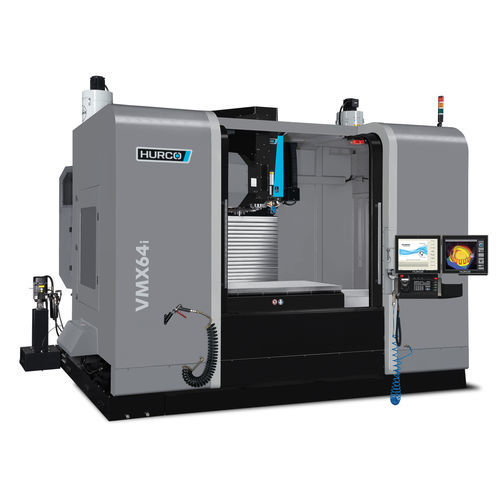

3-axis CNC machining center VMX 64 iverticalSK40SK50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40, SK50
- Number of tool stations
- 40 tools, 30 tools
- Other characteristics
- high-speed, high-precision
- X travel
1,625 mm
(64 in)- Y travel
864 mm
(34 in)- Z travel
762 mm
(30 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
18 kW, 22 kW
(24.47 hp, 29.91 hp)- Work feed X-axis
18,000 mm/min
(12 in/s)- Work feed Y-axis
18,000 mm/min
(12 in/s)- Work feed Z-axis
13,500 mm/min
(9 in/s)- Table load capacity
2,722 kg
(6,001 lb)- Tool weight (max)
7 kg, 15 kg
(15.4 lb, 33.1 lb)- Weight
14,600 kg, 15,000 kg, 15,500 kg
(32,187.49 lb, 33,069.34 lb, 34,171.65 lb)- Overall length
6,338 mm
(249.5 in)- Overall width
4,496 mm
(177 in)- Overall height
3,335 mm
(131.3 in)
Description
The speed, accuracy and reliability you need
TABLE
Spindle nose – table (mm) - 127 - 890
Table working surface W x D (mm) - 1.676 x 889
T-Slots (DIN 650) - 7 x 18 x 125
SPINDLE
Spindle Torque max. (Nm) - 239 (SK40) / 353 (SK50)
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80 / 76 / 95 (SK40) // 125 (SK50)
Tool length max. (mm) - 300 / 300 / 280 (SK40) // 300 (SK50)
FURTHER DETAILS
Content coolant tank (l) - 836
Scraper type chip conveyor - Standard
