- Hurco GmbH Werkzeugmaschinen

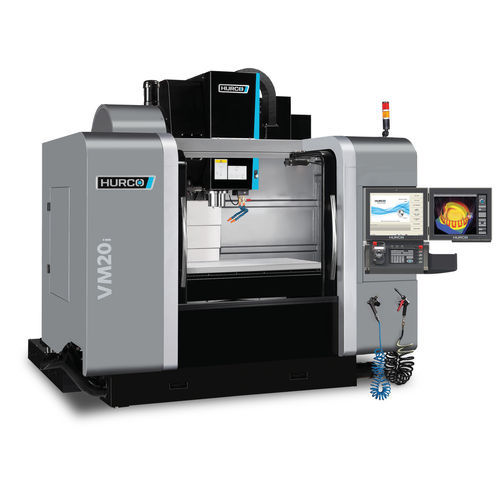

3-axis CNC machining center VM 20 i PlusverticalSK4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 24 tools
- X travel
1,016 mm
(40 in)- Y travel
508 mm
(20 in)- Z travel
508 mm
(20 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
28,000 mm/min
(18 in/s)- Work feed Y-axis
28,000 mm/min
(18 in/s)- Work feed Z-axis
28,000 mm/min
(18 in/s)- Table load capacity
1,800 kg
(3,968 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
4,150 kg
(9,149.18 lb)- Overall length
3,722 mm
(146.5 in)- Overall width
3,312 mm
(130.4 in)- Overall height
2,542 mm
(100.1 in)
Description
The plus in display and technical features optimizes ease of use and efficiency
TABLE
Spindle nose – table (mm) - 102 - 610
Table working surface W x D (mm) - 1.168 x 508
T-Slots (DIN 650) - 5 x 18 x 100
SPINDLE
Spindle Torque max. (Nm) - 82
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80
Tool length max. (mm) - 250
FURTHER DETAILS
Content coolant tank (l) - 200
Chip auger - Standard
