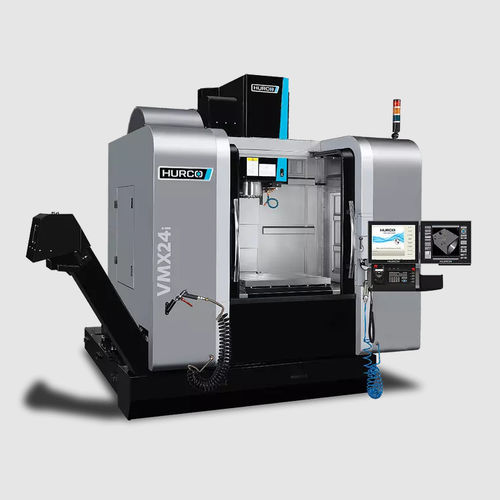

3-axis CNC machining center VMX 24 iverticalSK4030 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 30 tools
- Other characteristics
- high-performance
- X travel
610 mm
(24 in)- Y travel
508 mm
(20 in)- Z travel
610 mm
(24 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
9 kW
(12.24 hp)- Work feed X-axis
38,000 mm/min
(25 in/s)- Work feed Y-axis
38,000 mm/min
(25 in/s)- Work feed Z-axis
32,000 mm/min
(21 in/s)- Table load capacity
1,500 kg
(3,307 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
4,750 kg
(10,471.96 lb)- Overall length
3,930 mm
(154.7 in)- Overall width
4,041 mm
(159.1 in)- Overall height
2,725 mm
(107.3 in)
Description
Big capabilities in a small package
TABLE
Spindle nose – table (mm) - 152 - 762
Table working surface W x D (mm) - 760 x 510
T-Slots (DIN 650) - 5 x 18 H8 x 100
SPINDLE
Spindle Torque max. (Nm) - 95
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80
Tool length max. (mm) - 300
FURTHER DETAILS
Content coolant tank (l) - 367
Scraper type chip conveyor - Standard
