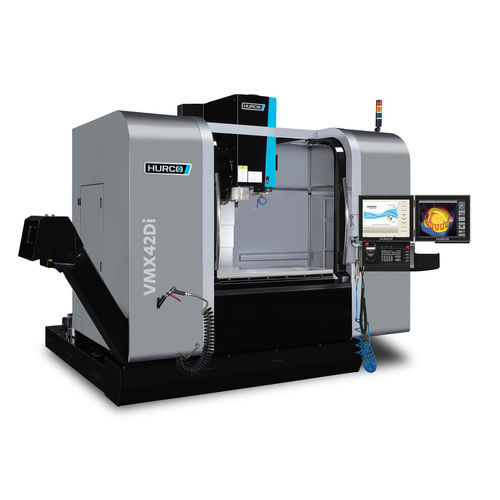

3-axis CNC machining center VMX 42 DiverticalSK4040 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- SK40
- Number of tool stations
- 40 tools, 30 tools
- Other characteristics
- high-performance
- X travel
1,067 mm
(42 in)- Y travel
610 mm
(24 in)- Z travel
610 mm
(24 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
38,000 mm/min
(25 in/s)- Work feed Y-axis
38,000 mm/min
(25 in/s)- Work feed Z-axis
32,000 mm/min
(21 in/s)- Table load capacity
1,750 kg
(3,858 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
6,500 kg, 6,809 kg
(14,330.05 lb, 15,011.28 lb)- Overall length
4,572 mm
(180 in)- Overall width
3,717 mm
(146.3 in)- Overall height
2,958 mm
(116.5 in)
Description
The CNC workhorse for high performance and flexibility
TABLE
Spindle nose – table (mm) - 125 - 645
Table working surface W x D (mm) - 1.270 x 610
T-Slots (DIN 650) - 5 x 18 H8 x 100
SPINDLE
Spindle Torque max. (Nm) - 96
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80 / 76
Tool length max. (mm) - 300
FURTHER DETAILS
Scraper type chip conveyor - Standard
