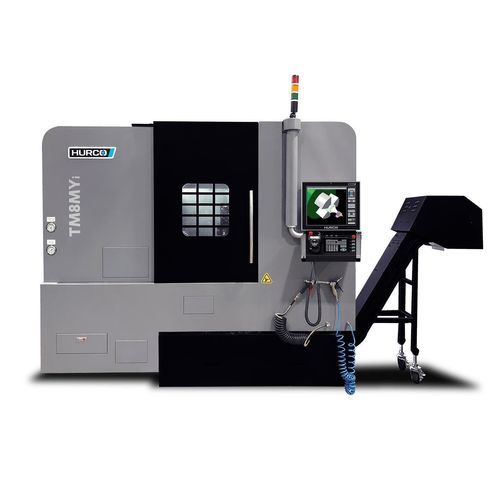

CNC lathe TM8MYhorizontalslant bed12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Structure
- slant bed
- Number of tool stations
- 12 tools
- Applications
- for small parts production
- Performance
- high-precision
- Other characteristics
- multi-function
- Associated function
- milling, drilling
- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum cutting diameter
320 mm
(13 in)- Maximum cutting length
375 mm
(15 in)- Bar capacity
65 mm
(3 in)- Axe X
232 mm
(9 in)- Axe Z
550 mm
(22 in)- Rapids on X
1 m/s
(3 ft/s)- Rapids on Z
1 m/s
(3 ft/s)- Nominal power
22.6 kW
(30.7 hp)- Maximum torque
264 Nm
(195 ft.lb)- Weight
4,490 kg
(9,899 lb)
Description
Overview
The TM8MY is part of the TMMY slant‑bed turning center family featuring live tooling and a programmable C‑axis. Designed for combined turning and secondary milling/drilling in small to medium lot production, it enables single‑setup machining to reduce cycle time and preserve part accuracy.
Highlights
Feedrate
X‑Axis Rapid Traverse — 30 m/min (1181 IPM)
Y‑Axis Rapid Traverse — 12 m/min (472 IPM)
Z‑Axis Rapid Traverse — 30 m/min (1181 IPM)
Capacity
Distance Between Centers — 597 mm / 23.5 in
Maximum Turning Diameter — 320 mm / 12.6 in
Maximum Turning Length — 375 mm / 14.76 in
Max Bar Capacity — 64.5 mm / 2.54 in
Swing Over Bed Diameter — 490 mm / 19.29 in
Swing Over Cross Slide Diameter — 490 mm / 19.29 in
Size
Machine Weight — 4490 kg / 9899 lb
Spindle
Chuck Diameter — 210 mm / 8.27 in
Spindle Power — 22.6 kW / 30.3 hp
Spindle Torque — 263.6 Nm / 194.7 ft‑lbs
Max Speed — 4000 RPM
Spindle Taper — BMT55
ATC
Tool Capacity — 12
Max Tool Diameter — 490 mm
Live Spindle
Max Speed — 5,000 RPM
Live Spindle Power — 11.9 kW / 16 HP
Live Spindle Torque — 37.8 Nm / 27.9 lb‑ft
Turret
Tool Capacity — 12
Tool Shank — 25 mm x 25 mm (0.98" x 0.98")
Max Boring Bar Diameter — 32 mm / 1.26 in
Travels
X‑Axis — 232 mm / 9.1 in
Y‑Axis — 55 mm / 2.17 in
Z‑Axis — 550 mm / 21.65 in
Inventory Status
Ready to ship
Technical specifications
The TM8MY is part of the TMMY slant‑bed turning center family featuring live tooling and a programmable C‑axis. Designed for combined turning and secondary milling/drilling in small to medium lot production, it enables single‑setup machining to reduce cycle time and preserve part accuracy.
Highlights
- Distance Between Centers: 597 mm (23.5 in)
- Maximum Turning Diameter: 320 mm (12.6 in)
- Maximum Turning Length: 375 mm (14.76 in)
- Chuck Size: 210 mm (8.27 in)
Feedrate
X‑Axis Rapid Traverse — 30 m/min (1181 IPM)
Y‑Axis Rapid Traverse — 12 m/min (472 IPM)
Z‑Axis Rapid Traverse — 30 m/min (1181 IPM)
Capacity
Distance Between Centers — 597 mm / 23.5 in
Maximum Turning Diameter — 320 mm / 12.6 in
Maximum Turning Length — 375 mm / 14.76 in
Max Bar Capacity — 64.5 mm / 2.54 in
Swing Over Bed Diameter — 490 mm / 19.29 in
Swing Over Cross Slide Diameter — 490 mm / 19.29 in
Size
Machine Weight — 4490 kg / 9899 lb
Spindle
Chuck Diameter — 210 mm / 8.27 in
Spindle Power — 22.6 kW / 30.3 hp
Spindle Torque — 263.6 Nm / 194.7 ft‑lbs
Max Speed — 4000 RPM
Spindle Taper — BMT55
ATC
Tool Capacity — 12
Max Tool Diameter — 490 mm
Live Spindle
Max Speed — 5,000 RPM
Live Spindle Power — 11.9 kW / 16 HP
Live Spindle Torque — 37.8 Nm / 27.9 lb‑ft
Turret
Tool Capacity — 12
Tool Shank — 25 mm x 25 mm (0.98" x 0.98")
Max Boring Bar Diameter — 32 mm / 1.26 in
Travels
X‑Axis — 232 mm / 9.1 in
Y‑Axis — 55 mm / 2.17 in
Z‑Axis — 550 mm / 21.65 in
Inventory Status
Ready to ship
Technical specifications
- Model: TM8MY
- Series: TMMY (TMM turning centers with live tooling & programmable C‑axis)
- Distance Between Centers: 597 mm / 23.5 in
- Maximum Turning Diameter: 320 mm / 12.6 in
- Maximum Turning Length: 375 mm / 14.76 in
- Chuck Size / Diameter: 210 mm / 8.27 in
- Machine Weight: 4490 kg / 9899 lb
- X‑Axis Rapid Traverse: 30 m/min / 1181 IPM
- Y‑Axis Rapid Traverse: 12 m/min / 472 IPM
- Z‑Axis Rapid Traverse: 30 m/min / 1181 IPM
- Spindle Power: 22.6 kW / 30.3 hp
- Spindle Torque: 263.6 Nm / 194.7 ft‑lbs
- Spindle Max Speed: 4000 RPM
- Spindle Taper: BMT55
- Live Spindle Max Speed: 5,000 RPM
- Live Spindle Power: 11.9 kW / 16 HP
- Live Spindle Torque: 37.8 Nm / 27.9 lb‑ft
- Tooling: ATC Tool Capacity 12; Turret Tool Capacity 12; Tool Shank 25 mm x 25 mm
- Max Boring Bar Diameter: 32 mm / 1.26 in
- Max Bar Capacity: 64.5 mm / 2.54 in
