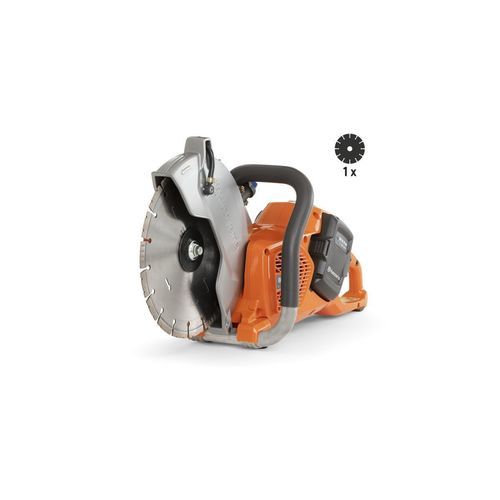

Electric cut-off saw K 540i

for stone and concrete

Product description
The K 540i is a battery-powered power cutter optimised for hardscaping, masonry and landscaping tasks. It features the X-Halt™ blade brake function for improved operational safety, an excellent power-to-weight ratio and optimal balance. The cutter provides up to 100 mm cutting depth with an adjustable blade guard and is suitable for both wet and dry cutting. Ergonomic design, low vibrations and zero CO₂ emissions during operation make it suited for sensitive or urban sites.

Benefits

• Specially developed battery blades for optimal performance
• Effective for both wet and dry cutting (wet cutting kit available)
• One-battery system (BLi‑X) for interchangeable use across products
• Safe operation with X-Halt™ immediate blade brake
• Zero CO₂ emissions during use (electric)
• Resource-smart plastic approach (approx. 80% mass-balanced biomass-based plastic)
• Lightweight magnesium blade guard with step-less, easy adjustment

Feature highlights

• Power source: Battery (BLi‑X ecosystem)
• Optimised for hardscaping, masonry and landscaping applications
• Excellent power-to-weight ratio and balanced ergonomics
• Low vibration for improved handling and comfort
• Capable of wet and dry cutting (wet cutting kit with vacuum attachment and Gardena coupling available)
• X-Halt™ brake function for immediate motor stop
• 100 mm cutting depth with compatible battery blades

Recommended diamond tools (selection)

• ELITE-CUT™ S35S BAT — Ø 250 mm, segment height 13 mm, arbor 25.4 mm
• TACTI-CUT™ S35S BAT — Ø 250 mm, segment height 10 mm, arbor 25.4 mm
• VARI-CUT™ FR3 — Ø 250 mm, arbor 25.4 mm
• VARI-DISC™ STEEL — Ø 250 mm, arbor 25.4 mm

Recommended accessories (selection)

• BLi‑X batteries: 40-B330X — Li‑Ion, 36 V, 9 Ah, 324 Wh
• BLi‑X batteries: 40-B220X — Li‑Ion, 36 V, 6 Ah, 216 Wh
• BLi‑X chargers: 40-C500X, 40-C750X
• Wet cutting kit with vacuum attachment and Gardena coupling (included/available)
• Transport boxes and bags (compatible accessories)

Article information

• Commercial designation: POWER CUTTER K 540i EU/RoW
• Art nr: 970 66 40‑01

Technical specifications

• Power source: Battery (BLi‑X)
• Maximum cutting depth: 100 mm
• Maximum blade diameter: 267 mm
• Maximum water pressure (wet cutting): 6 bar
• Weight (complete product without side packed articles): 4.17 kg
