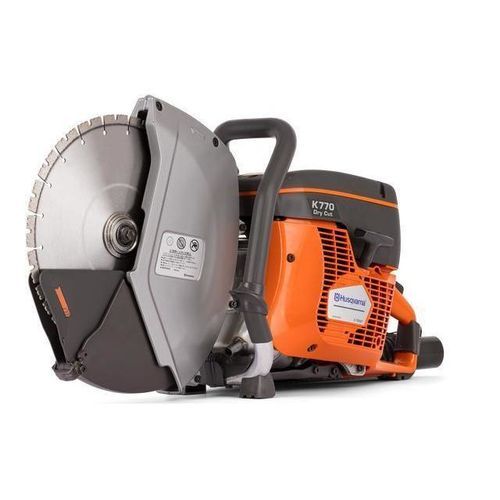

Petrol cut-off saw K 770 Dry Cut

for stonefor concrete

Product description Husqvarna K 770 Dry Cut is a lightweight petrol power cutter designed for dry cutting with integrated dust extraction. It combines the proven cutting performance of the K 770 with an integrated fan housing and strong airflow (100 cfm) that transports dust into a reusable dust bag via an integrated nozzle. The machine delivers a maximum cutting depth of 122 mm and a typical maximised cutting depth of ~123 mm when used with a 60 mm flange. It accepts blades up to 300 mm and has a dry output power of 3.9 kW while weighing 11.9 kg.

Benefits

• Improved engine efficiency for consistent performance
• Cleaner operation with reduced emissions and dust dispersion
• Effective dust containment via integrated fan housing and reusable dust bag with nozzle
• Low vibration levels for operator comfort (handles below 2.5 m/s²)

Key features / Feature overview

• Improved engine efficiency: more usable power without higher fuel consumption
• Cleaner operation: reduced hydrocarbon emissions compared with previous versions
• Effective dust containment: integrated fan housing and durable reusable dust bag with integrated nozzle
• Exceptionally low vibrations for reduced operator fatigue
• Maximised cutting depth: integrated gearbox, pulley position and 60 mm flange enable ~123 mm
• Semi-automatic SmartTension for easy and optimal belt tensioning
• Long service intervals supported by Poly-V belt, DuraStarter™ and Active Air Filtration™
• Heavy-duty cutting arm: cast magnesium crankcase with three-bolt joint for higher torsional rigidity
• Easy starting: carburettor, cylinder design, digital ignition, air purge and decompression valve
• Applications: cutting blocks, curbstones and pavers
• Applications: cast concrete
• Applications: regular cutting in floors and walls
• Applications: rescue cutting

Technical specifications

• Model name: K 770 Dry Cut
• Power source: Petrol
• Output power: 3.9 kW
• Maximum cutting depth: 122 mm
• Typical maximised cutting depth (noted): ~123 mm with 60 mm flange
• Maximum blade diameter: 300 mm
• Weight (complete product w/o side packed articles): 11.9 kg
• Integrated airflow for dust extraction: 100 cfm
• Dust handling: integrated fan housing + reusable dust bag with integrated nozzle
• Vibration level (handles): below 2.5 m/s²
• Notable items: SmartTension (belt tensioning), DuraStarter™ (maintenance-free starter), Active Air Filtration™ (efficient filter system)
• Article number (art nr): 970 85 05‑02
