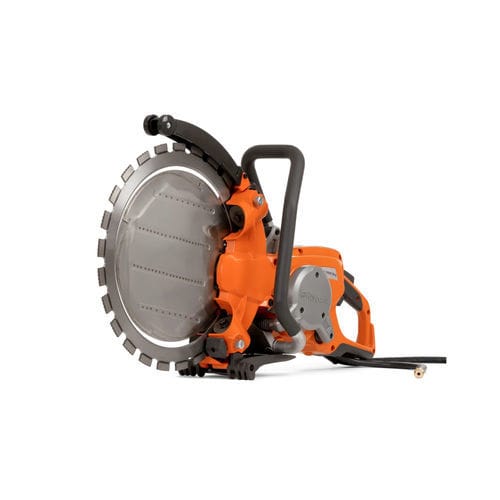

Concrete cutter K 7000 Ring

Product description
Husqvarna K 7000 Ring is a PRIME™ high-frequency electric power cutter designed for deep cutting on concrete, masonry and pipes. It pairs high output power with a balanced body and very low vibration levels for extended operator comfort. The machine is modular and can be combined with PRIME™ power packs to suit site requirements.

Key features

• X-Halt™ blade brake function with compatible PRIME™ power packs (rapid blade stop).
• Modular PRIME™ system — connect to PP 70, PP 220 or PP 492 power packs.
• Deep cutting via peripheral drive: standard 270 mm, up to 325 mm with peripheral drive option.
• Improved productivity through motor/power-pack communication for optimal power and rpm.
• Power options: 3-phase 5.5 kW (180–480 V) and 1-phase 1.5–3 kW (120–240 V) depending on configuration.
• Overload protection with LED indicator.
• Very low handle vibration: < 2.5 m/s² for operator comfort.
• On/Off water trigger for controlled wet cutting; water flow starts after trigger lock-out.
• Pipe cutting capability with appropriate diamond tools and accessories.

Compatibility & system

• PRIME™ modular electric system compatible with PP 70, PP 220 and PP 492.
• X-Halt™ available when connected to PP 8 or PP 70 depending on configuration.
• Recommended diamond ring blades: e.g. ELITE-RING PRE-CUT, ELITE-RING R10, R1420, R1445 according to application.

Technical data (top specifications)
Power source: Corded
Output power: 5.5 kW
Cutting depth, max: 270 mm (standard) — up to 325 mm with peripheral drive option
Weight (complete product without side packed articles): 12 kg
Blade diameter, max: 370 mm (standard) — 425 mm (alternate configuration)
Article number: 970 75 63‑01

Technical specifications

• PRIME™ high-frequency electric technology for modular operation.
• Output power: 5.5 kW (3-phase); supports 1-phase 1.5–3 kW.
• Maximum cutting depth: 270 mm (standard); 325 mm with peripheral drive.
• Maximum blade diameter: 370 mm (standard); 425 mm optional.
• Weight: 12 kg (complete product without side packed articles).
• Handle vibration level: < 2.5 m/s².
• X-Halt™ blade brake when connected to compatible power packs.
• On/Off water trigger for wet cutting; water flow starts after trigger lock-out.
• Overload protection with LED indicator.
