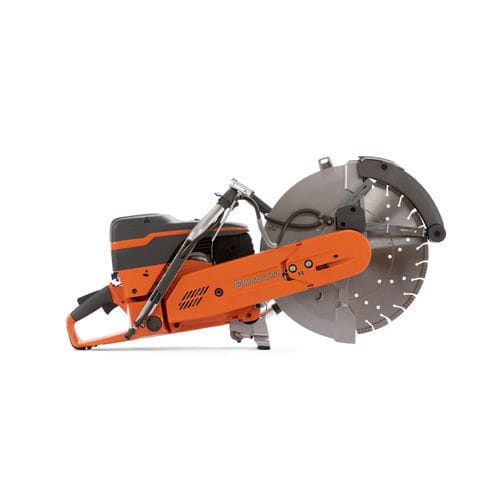

Stone and concrete cut-off saw K 1270 SmartGuard™

Product overview
The Husqvarna K 1270 SmartGuard is a petrol-powered power cutter delivering 5.8 kW output for heavy-duty cutting tasks. It features the SmartGuard extended blade guard to reduce kickback risk and to emphasise the correct cutting zone and technique. Compatible with the KV 9/12 trolley for guided road and surface cutting, enabling precise, focused operation.

Key features and benefits

• Operational safety through SmartGuard extended blade guard
• Easy inspection and visual access to guard condition
• Design that helps initiate the cut in the correct zone
• Easy starting: SmartCarb carburettor, decompression valve and air purge
• Anti-vibration system for operator comfort
• High power with low emissions (X-torq engine)
• Magnesium blade guard for improved power-to-weight ratio
• Reduced wear thanks to sealed Poly-V belt transmission
• Reversible cutting arm for cuts close to walls and floor
• Active Air Filtration (three-stage) for longer engine life
• Water cutting kit with trigger-activated flow and adjustable rate
• Disk decelerator to reduce stopping time after shutdown

Functional details (excerpt)

• SmartGuard: extended guard that defines a safer cutting zone and encourages correct technique
• Active Air Filtration: three-stage air cleaning to extend engine life and reduce unexpected stops
• SmartCarb: automatic carburettor compensation to maintain power as the filter loads
• Poly-V belt: efficient power transmission with extended service intervals
• Disk decelerator: reduces blade stop time for faster job turnover
• Water kit function: trigger-controlled water on/off with adjustable flow
• Starting system: decompressor, air purge and digital ignition for reliable starts

Technical data (main specifications)

• Model: K 1270 SmartGuard
• Manufacturer: Husqvarna
• Power source: Petrol
• Output power: 5.8 kW
• Maximum cutting depth: 145 mm
• Recommended blade diameter: 400 mm
• Weight (without accessories): 15.1 kg
• Article number: 970 50 93‑01

Applications

• Road works and pavement cutting; cutting of hard construction materials; professional guided cutting with KV 9/12 trolley
