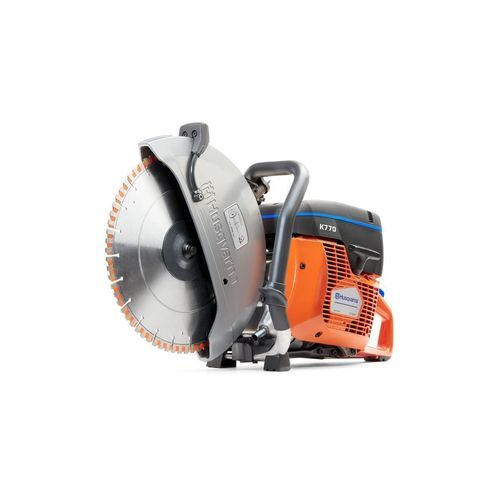

Stone cut-off saw K 770 OilGuard

for concrete

Product description
Unique OilGuard technology helps prevent engine damage caused by incorrect oil–fuel mix or wrong oil type. An optical detection system monitors the machine and can reduce engine rpm if a mismatch is detected, lowering risk of damage and reducing maintenance costs. Designed for rental and professional use.

Key benefits

• Improved engine efficiency
• Cleaner operation with reduced hydrocarbon emissions
• OilGuard: optical detection system that prevents engine damage from incorrect fuel–oil mix or oil type
• Exceptionally low vibrations (below 2.5 m/s2 in the cutter handles)

Features

• Improved engine efficiency delivers more power without increasing fuel consumption
• Advanced engine design reduces hydrocarbon emissions by approximately 25% versus previous version
• OilGuard optical detection system (can reduce engine rpm if incorrect oil/fuel is detected)
• OilGuard function can be deactivated (pull out OilGuard button on rear handle to use standard two-stroke oil)
• Exceptionally low vibrations (< 2.5 m/s2 in cutter handles) for increased comfort and longer operation periods
• Semi-automatic SmartTension for easy and optimal belt tensioning (minimises under/over tensioning)
• Long service intervals (Poly-V belt, maintenance-free DuraStarter, Active Air Filtration)
• Heavy-duty cutting arm with redesigned cast-magnesium crankcase and three-bolt joint for higher torsional rigidity
• Easy starting (carburettor, cylinder, digital ignition, air purge and decompression valve)
• Reduced slurry and low water consumption with progressive water valve and wet cutting kit
• Reversible cutting arm allows cuts close to walls or ground
• Suitable for asphalt cutting
• Suitable for cutting blocks, curbstones and pavers
• Suitable for cable burying
• Suitable for cast concrete
• Suitable for floors and walls
• Suitable for rescue cutting

Top specifications
Power source: Petrol
Output power: 3.9 kW
Cutting depth, max: 125 mm
Weight (complete product w/o side packed articles): 10.1 kg
Blade diameter, max: 350 mm
Article description: POWER CUTTER K 770 OilGuard 14" | 20 / 1
Art nr: 970 85 06 ad03
Vibrations (handles): below 2.5 m/s2

Technical specifications

• Model: K 770 OilGuard
• Brand: Husqvarna
• Power source: Petrol
• Output power: 3.9 kW
• Max cutting depth: 125 mm
• Max blade diameter: 350 mm
• Weight (complete product w/o side packed articles): 10.1 kg
• Special system: OilGuard optical detection (can be deactivated)
• Vibration level (handles): < 2.5 m/s2
• Notable features: SmartTension belt tensioning, DuraStarter starter, Active Air Filtration, reversible cutting arm, progressive water valve (wet cutting)
• Article description and art number: POWER CUTTER K 770 OilGuard 14" | 20 / 1 - Art nr: 970 85 06 ad03
