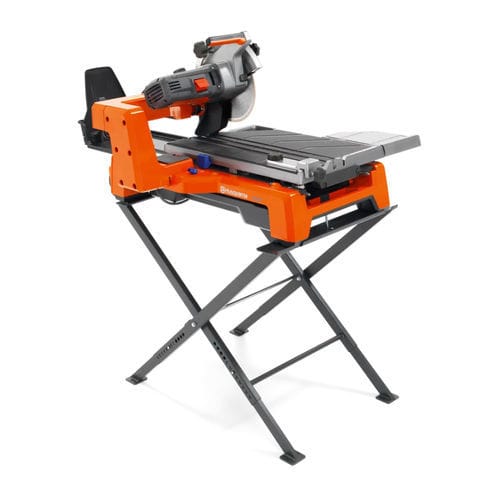

Electric cut-off saw TS 60

Product description
TS 60 is a compact, jobsite-ready tile saw designed for efficient straight, diagonal and bevel cuts on ceramic and porcelain tiles. The machine combines a large cutting table with a patented Jet Stream Water Containment System that minimises slurry and water spray by retaining and recycling water in the cart. Plunge and 45° mitre cutting are possible for greater versatility, and foldable legs with transport wheels allow single-person handling.

Key features

• Jet Stream Water Containment System for a clean work area and reduced slurry
• Lightweight design with foldable legs and wheels for easy transport
• Flexible cutting: plunge cuts and mitre cuts up to 45°
• Large removable table suitable for long and diagonal cuts
• Easy-to-clean table and removable parts
• Recycling water system reduces need for frequent refills
• Adjustable cutting head for precise beveling (22.5°–45°)
• Overload protection (Elgard™) with LED indicator
• Electronic SoftStart™ for smooth starts compatible with standard fuses

Applications

• On-site tile cutting for construction and renovation projects
• Longitudinal and diagonal cuts on large format tiles (e.g. 50×50 cm)
• Interior finishing work where low splash and clean environment are required
• Single-operator tasks requiring easy transport and setup

Technical specifications

• Model: TS 60
• Article number: 966 61 07‑02
• Rated input power: 1.8 kW (approx. 2.4 hp)
• Supply voltage (typical): 240 V (variants available)
• Max cutting depth: 78 mm
• Blade diameter, max: 250 mm
• Max cutting length: 726 mm (technical data) / 700 mm (product description)
• Water system: Jet Stream Water Containment System (retention and recycling)
• Adjustable cutting head: 22.5°–45°
• Overload protection: Elgard™ (LED)
• Electronic SoftStart™ for smooth start
