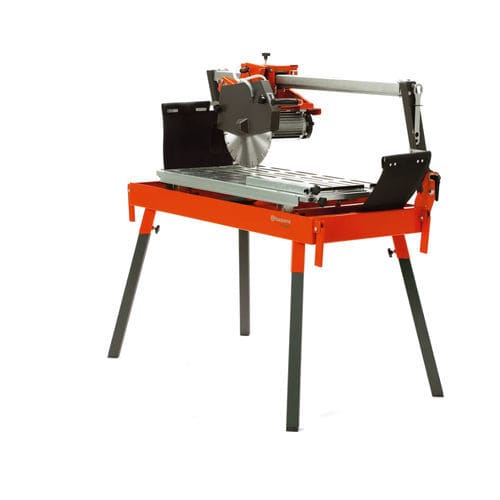

Electric cut-off saw TS 100 R

for stone and concrete

Product description
Husqvarna TS 100 R is a universal tile and masonry saw designed for accurate cutting of bricks, blocks and tiles. The extendable guide rail allows cutting of long workpieces up to 1,000 mm. The machine provides a maximum cutting depth of 105 mm in a single pass and up to 210 mm by step cutting. Plunge cutting and bevel cuts up to 45° are possible, enabling versatile on-site or workshop operations.

Key features

• Extendable guide rail enabling cuts up to 1,000 mm
• Maximum cutting depth 105 mm (one pass); up to 210 mm by step cutting
• Plunging head for deep step cutting and plunge cuts
• Bevel cutting capability up to 45° for versatile cutting operations
• Precise rail saw system for high-precision cuts
• Removable water tray for easy cleaning
• Delivered with removable legs for operation on tables, floors or using legs
• Lateral extension that can act as a stop for efficient repetitive cutting
• Heavy-duty water pump with long service life
• Easy replacement of the water pump thanks to an electrical quick connection
• Sturdy, reliable motor designed for long product life

Variants & options

• Rated input power: 2.2 kW (option: 3 kW)
• Voltage: 230 V (option: 400 V)
• Recommended blade diameter: 350 mm

Technical specifications

• Model: TS 100 R
• Rated input power: 2.2 kW
• Maximum cutting depth: 105 mm (one pass); up to 210 mm by step cutting
• Maximum blade diameter: 350 mm
• Maximum cutting length: 1,000 mm
• Bevel capacity: up to 45°
• Suitable for bricks, blocks and tiles
• Article reference: 965 15 40‑02
