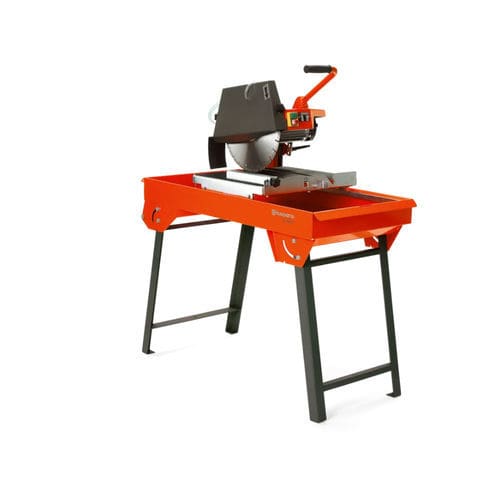

Concrete cutter TS 300 E

Product description
TS 300 E is a universal masonry table saw designed for cutting bricks, concrete blocks, paving stones and other masonry materials. It delivers up to 100 mm cutting depth in a single pass and can reach up to 150 mm using step cutting. The saw supports plunge and bevel cuts up to 45° (and 90° for cross cuts). A robust one-piece frame with integrated conveyor rails increases rigidity and protects guide rails for extended service life.

Key benefits

• Durable motor and construction for long operating life.
• Versatile cutting modes: plunge cuts and bevel cuts (45°) plus 90° cross cuts.
• Easy transport and setup thanks to foldable legs and compact design.
• Heavy-duty water pump for continuous wet cutting and dust suppression.
• Quick electrical connection for fast water-pump replacement and maintenance.
• Protected guide rails: solid frame shields rails from external impacts.

Technical data (top specifications)
Rated input power: 2.2 kW
Rated power (marketing): 3 hp
Supply voltage (example variant): 230 V
Max cutting depth: 100 mm (up to 150 mm by step cutting, 80 mm indicated for a single pass in some descriptions)
Max blade diameter: 350 mm
Max cutting length: 610 mm

Product information / Article
MASONRY SAW TS 300 E | 3 hp | 230 V | 300 mm | wo/bl.
Art nr: 965 15 46‑01

Applications & handling

• Typical applications: cutting brick, aerated concrete, blocks, pavers and similar masonry elements.
• Use in construction sites and rental fleets where portability and quick setup are required.
• Foldable legs and protected guide rails simplify transport and reduce on-site damage risk.

Maintenance & service notes

• Heavy-duty water pump designed for prolonged wet cutting; quick-connect electrical interface allows fast replacement.
• Regular inspection of guide rails and water system recommended to maintain cutting precision and equipment life.
• Follow local electrical and safety regulations for connection and operation.
