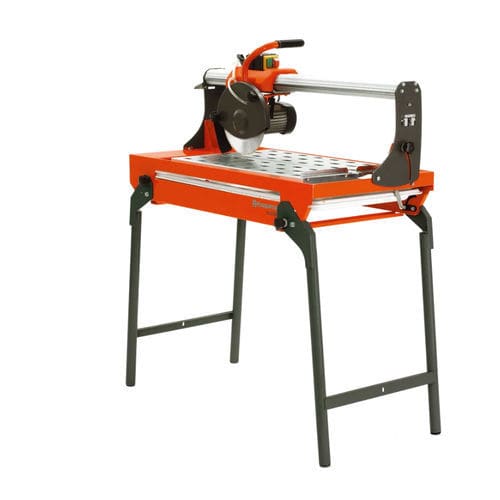

Circular saw TS 73 R

cut-offfor metalsprecision

Overview
TS 73 R is a rail-mounted tile saw designed for precision cutting of large ceramic, porcelain and clinker tiles. The machine offers a 730 mm cutting length and supports plunge and bevel cuts from 45° to 90°, including diagonal cuts on tiles up to 50×50 cm.

Key features

• Durable guide rail system for precise long cuts
• Cutting length up to 730 mm
• Plunge cuts and bevel cuts from 45° to 90°
• Maximum cutting depth: 50 mm
• Maximum blade diameter: 230 mm
• Foldable legs for easier setup and transport
• Heavy-duty water pump with electrical quick-connection for fast replacement
• Removable water tray for straightforward cleaning

Benefits

• Accurate straight and diagonal cuts for large-format tiles
• Versatile cutting modes (plunge, bevel, diagonal) to reduce secondary finishing
• Quick replacement of water pump reduces downtime on site
• Foldable stand and compact layout simplify transport and jobsite handling
• Removable tray and accessible components ease maintenance
• Consistent motor performance for repetitive cutting tasks

Technical specifications

• Model: TS 73 R
• Rated input power: 1 kW (manufacturer listing also indicates ~1.3 hp)
• Max cutting depth: 50 mm
• Max blade diameter: 230 mm
• Max cutting length (rail): 730 mm
• Cut types: plunge cuts, bevel cuts 45°–90°, diagonal cuts up to 50×50 cm
• Voltage: variants available (115–230 V depending on model)
• Article number(s): 965 15 38‑02 (EU variant); other references in documentation: 953 40 54‑01

Ordering / notes
Includes water pump and removable water tray. Foldable legs and rail guide system facilitate jobsite setup. Verify voltage and article number when ordering to ensure the correct regional configuration.
